Calypso - Ultrasonic Portable Mini wind meter

Calypso - Ultrasonic Portable Mini wind meter

Regular price R 6,626.00 ZAR
Regular price Sale price R 6,626.00 ZAR
On Sale Sold out
Shipping calculated at checkout.

Subject to Daily Exchange rate variations

Speed Range
NMEA Connect Plus Gateways ?

mastercard logo
visa logo
payfast logo
snapscan logo
zapper logo
1-2 weeks delivery symbol
guarantee included logo
secure checkout logo
expert advice seacret

Shipping Information

  • 1-2 Weeks
View full details

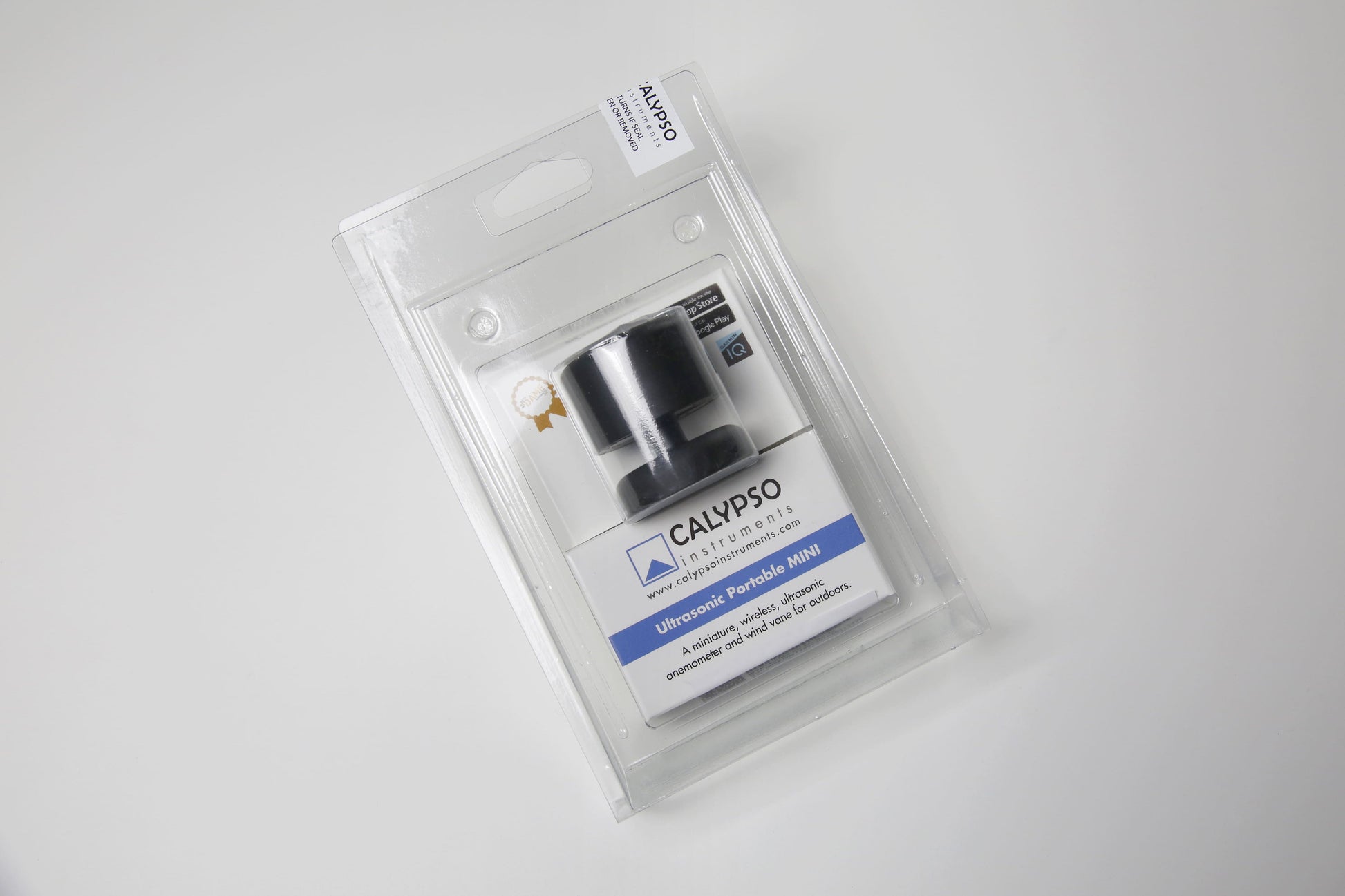

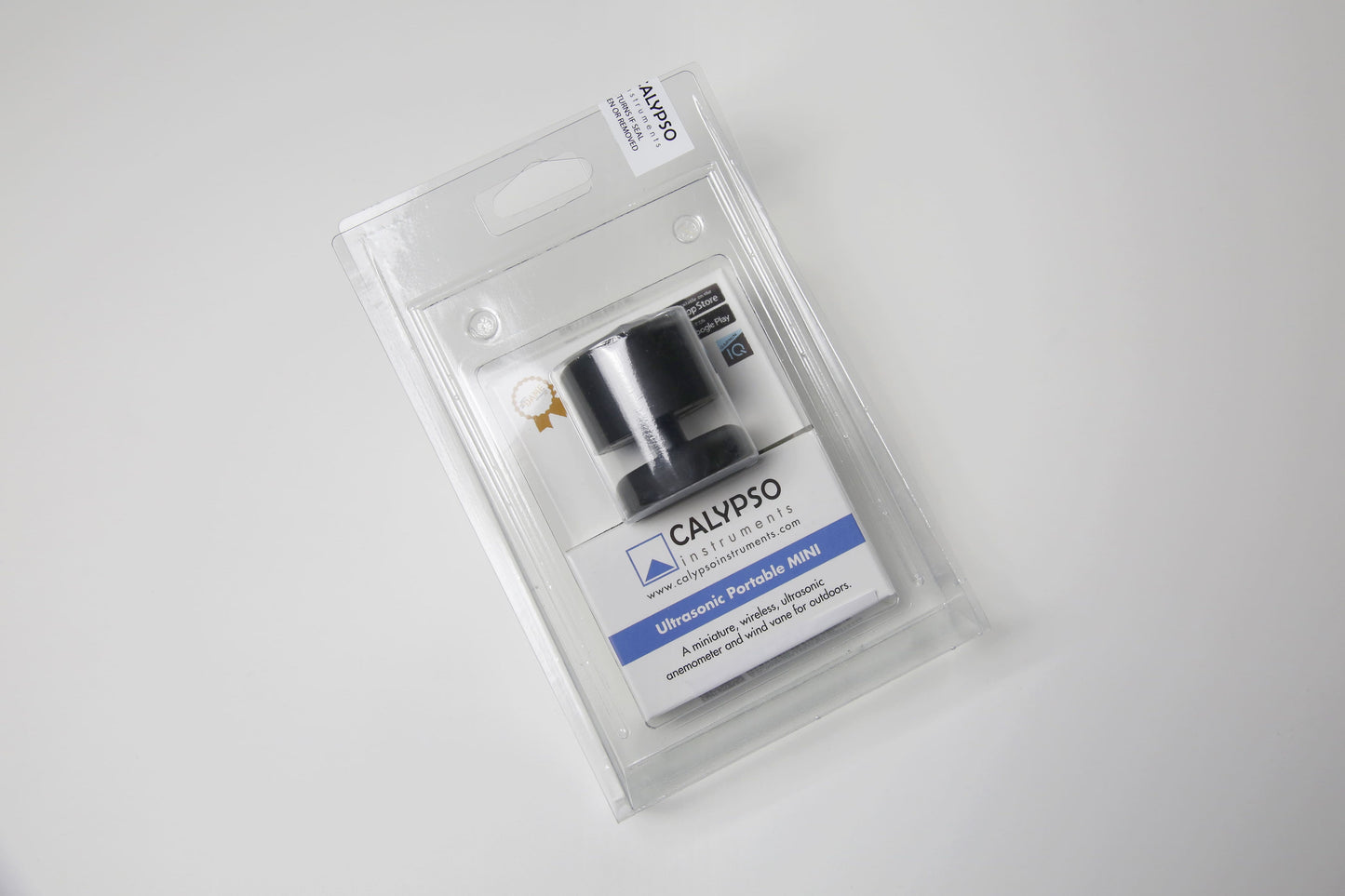

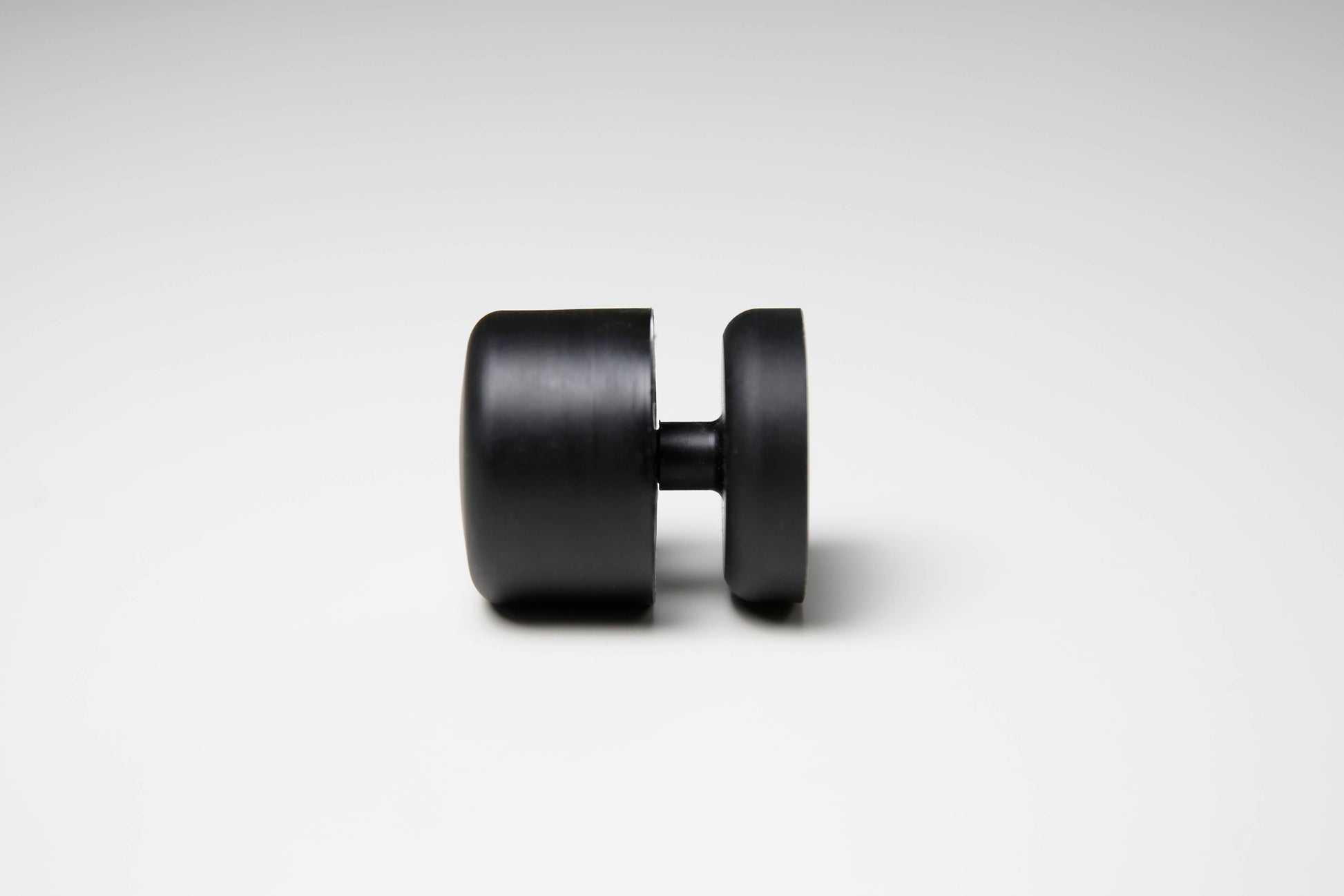

A miniature, Bluetooth, Battery powered, ultrasonic anemometer and wind vane.

Built with ULTRASONIC sensors, with no moving parts to make it robust and dependable, the Ultrasonic Portable Mini is a wind meter that measures both speed  and direction, allowing data logging via a free app.

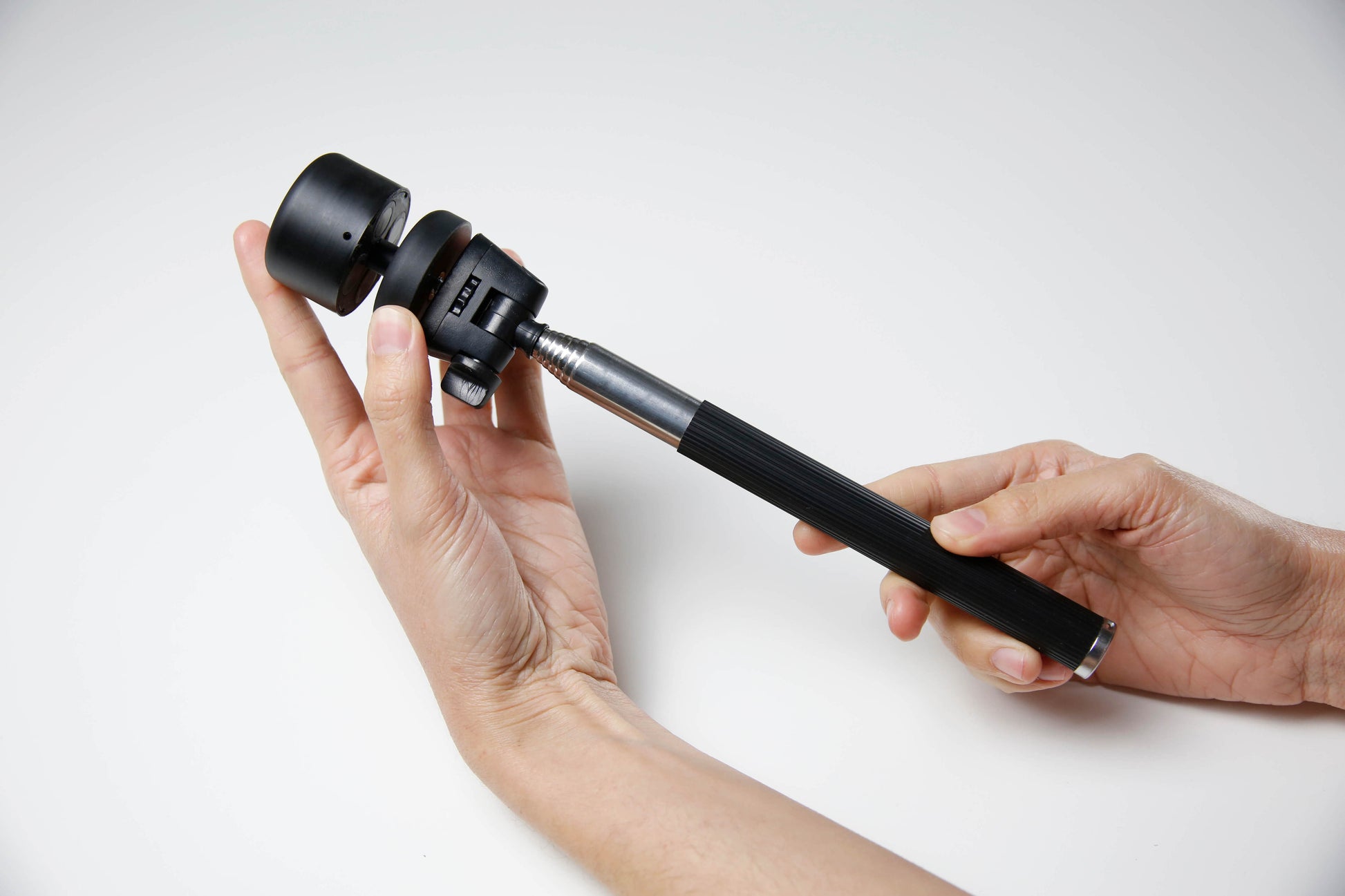

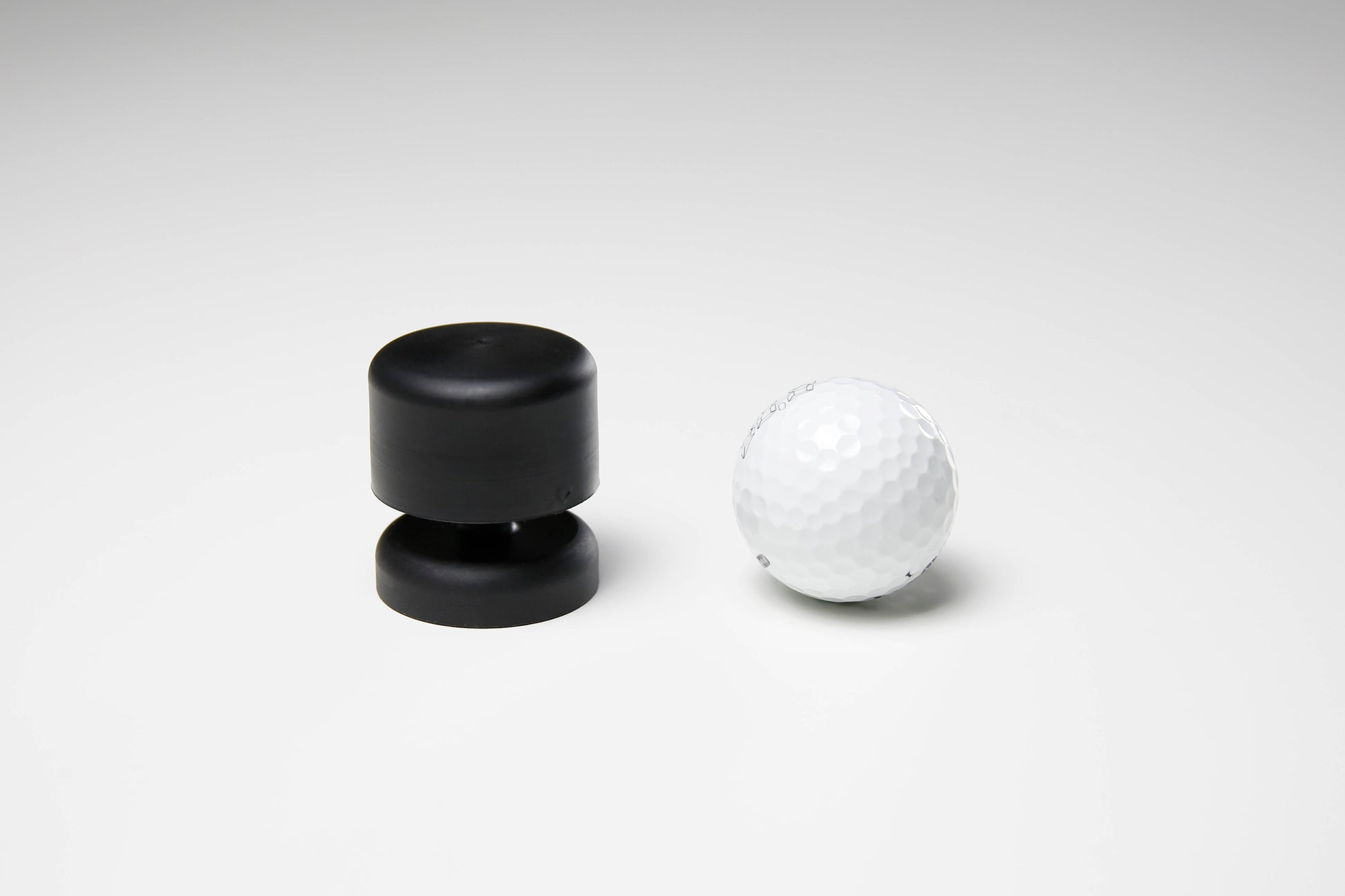

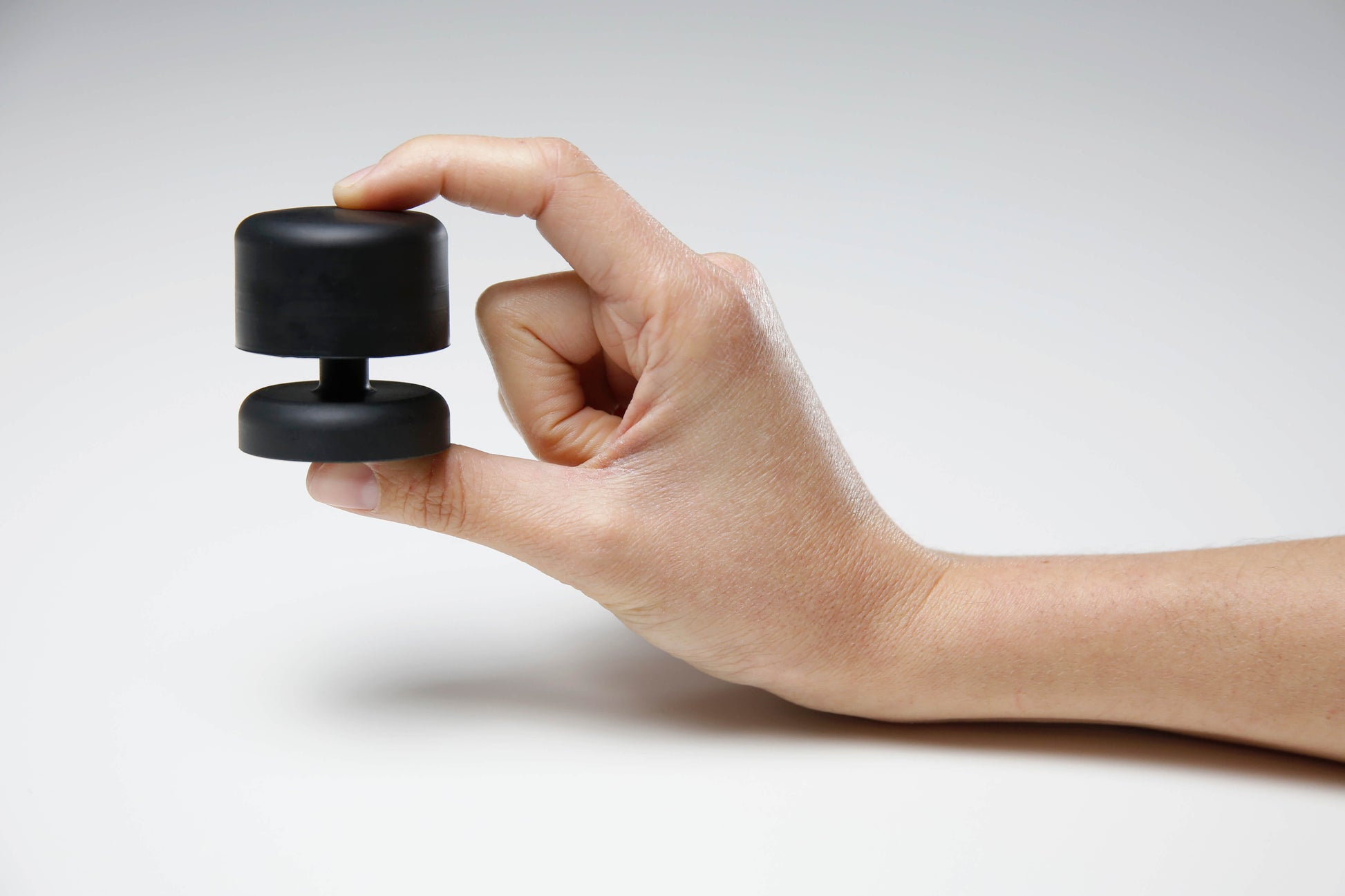

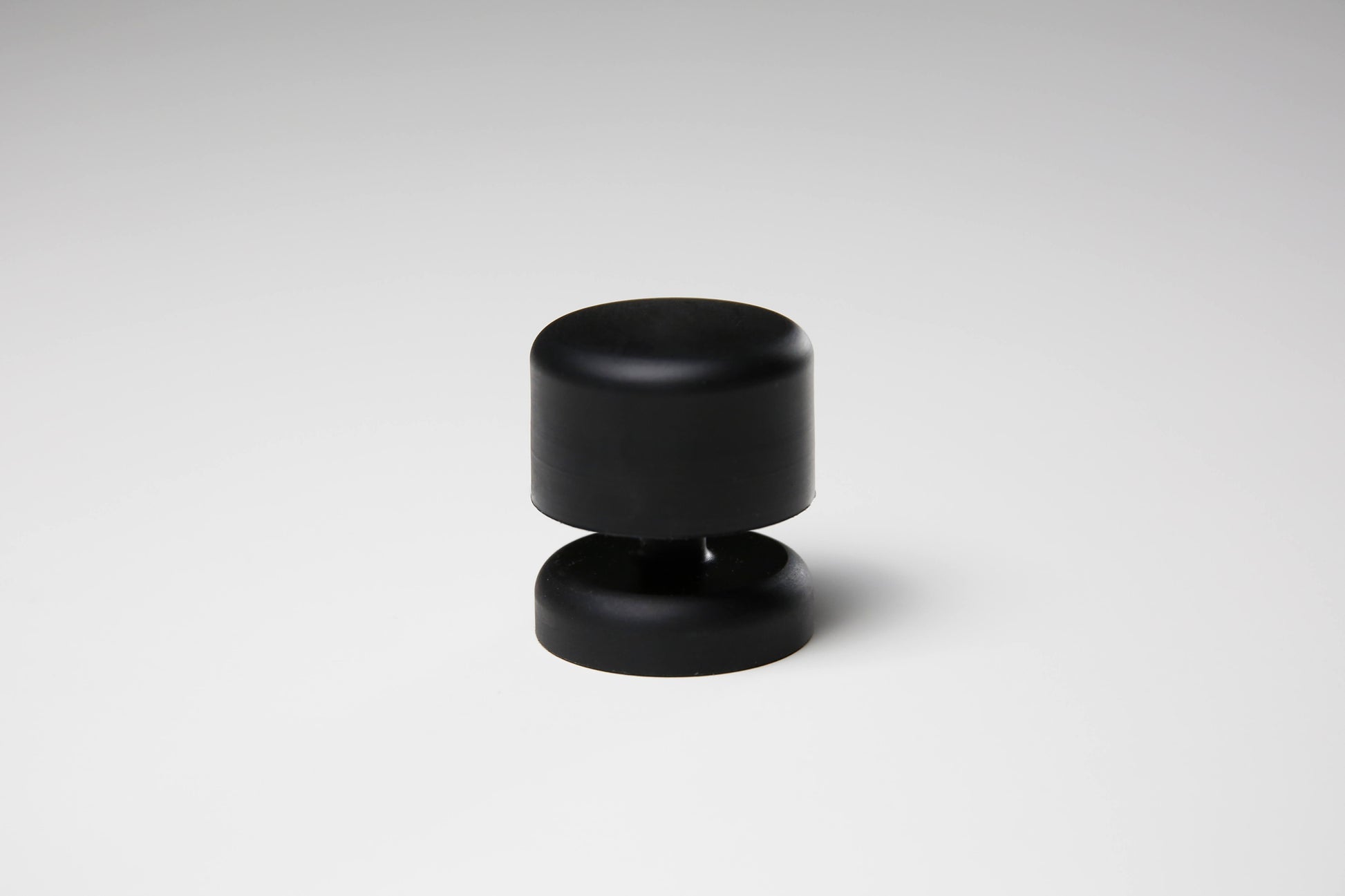

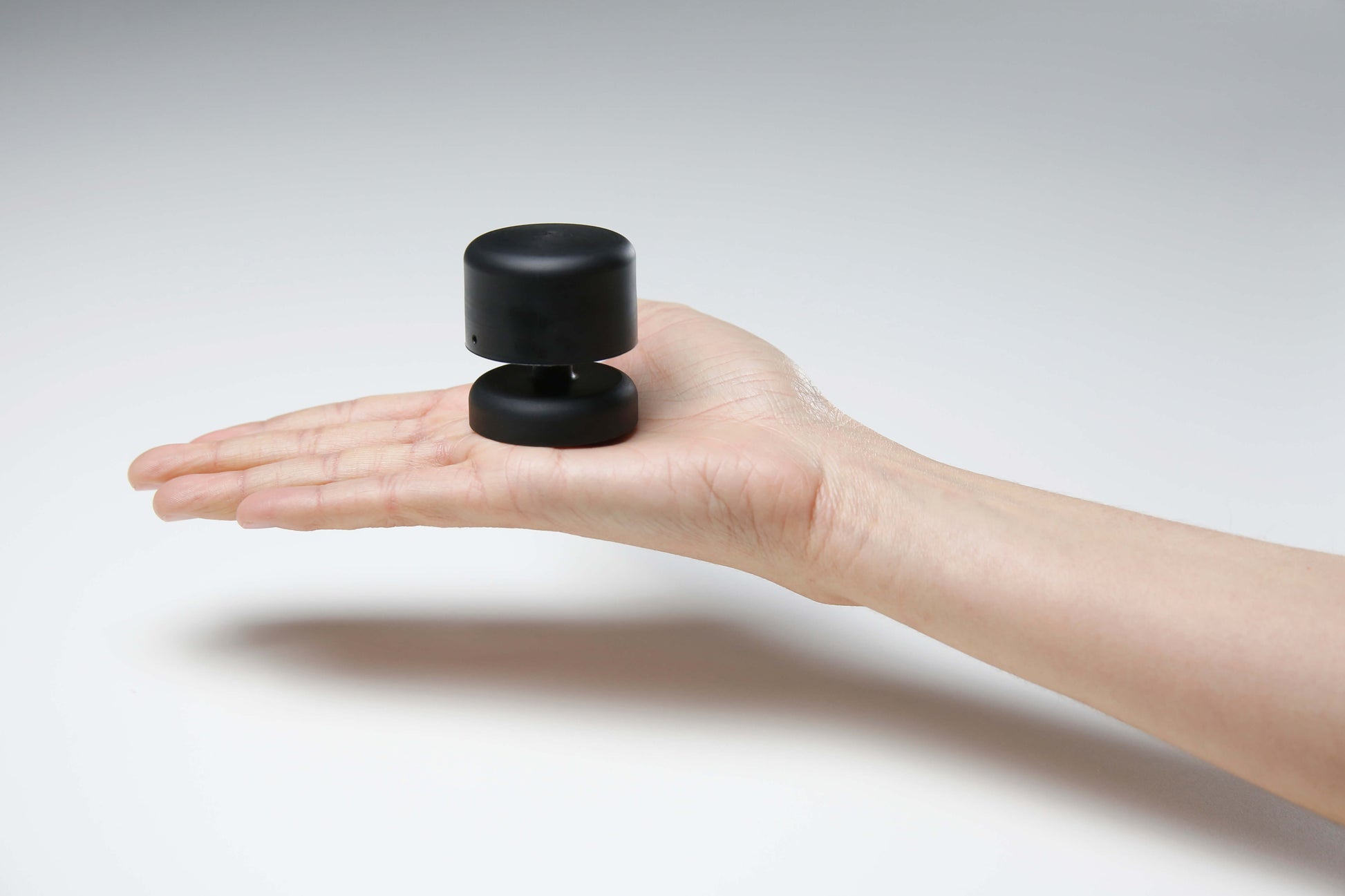

With just 43 mm diameter the Ultrasonic Portable MINI is a fully handheld, complete wind instrument.

It's size makes it an ideal  stand-alone wind meter of great value on a wide range of industries and applications.

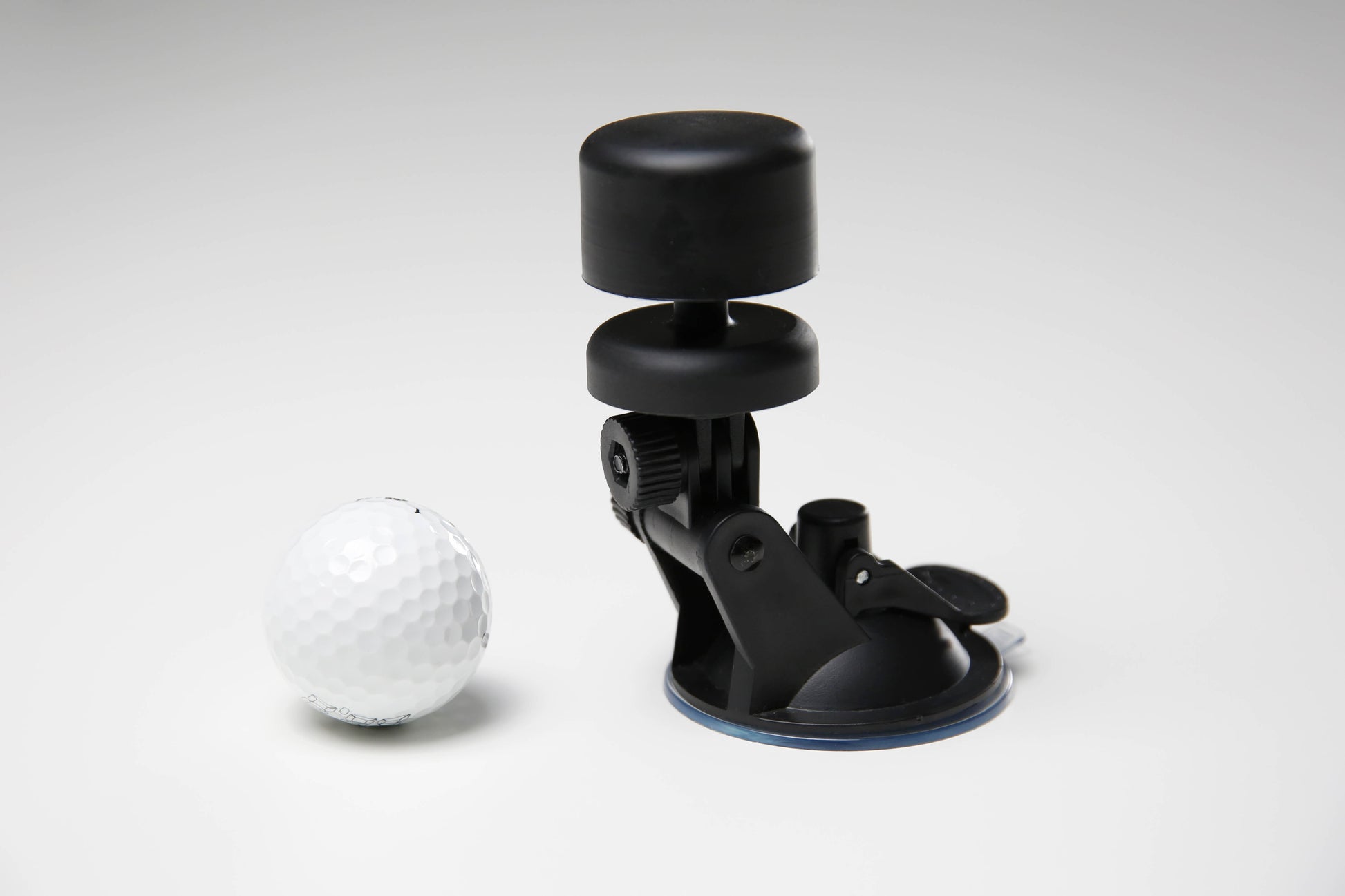

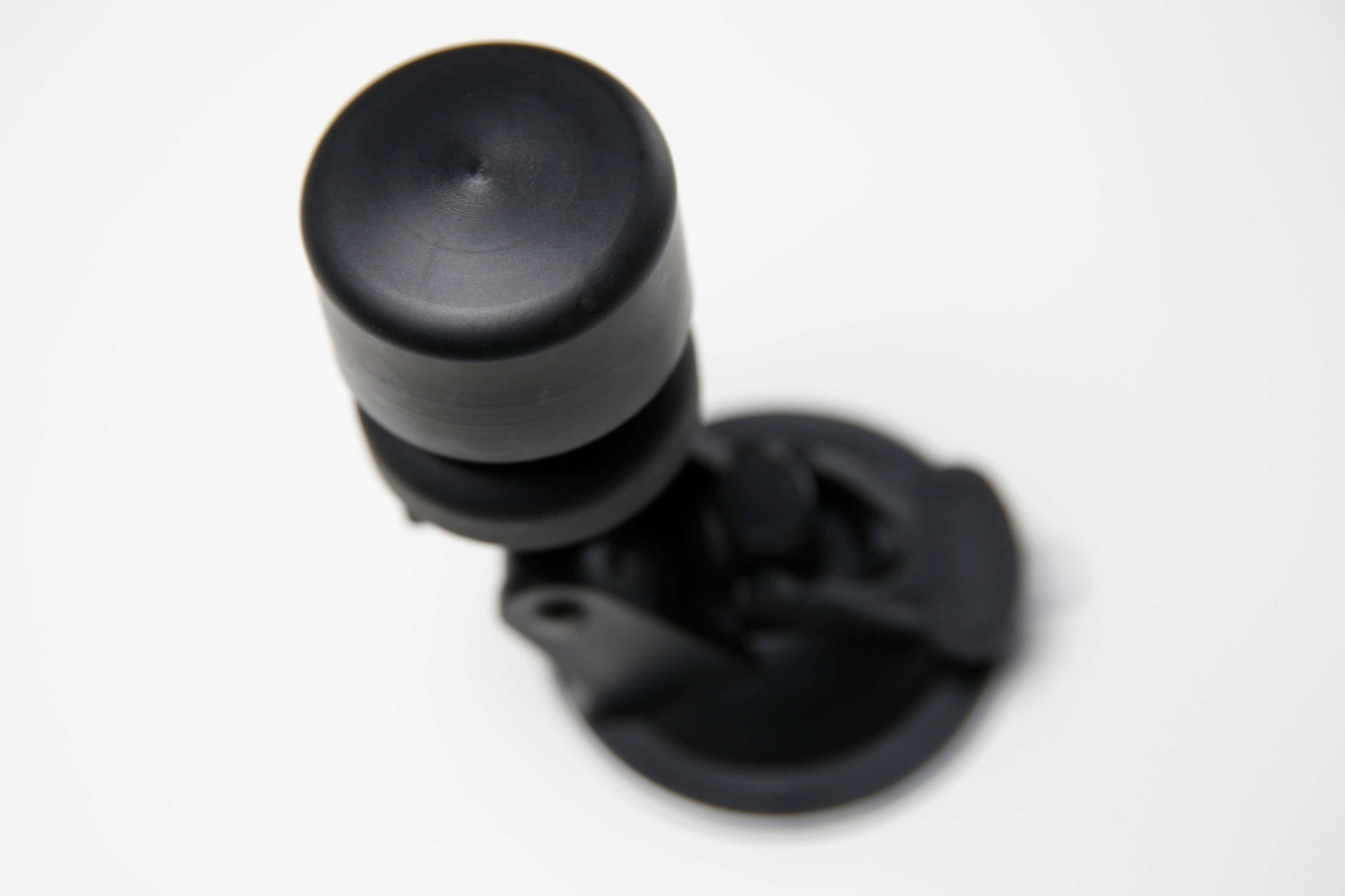

Simple mount

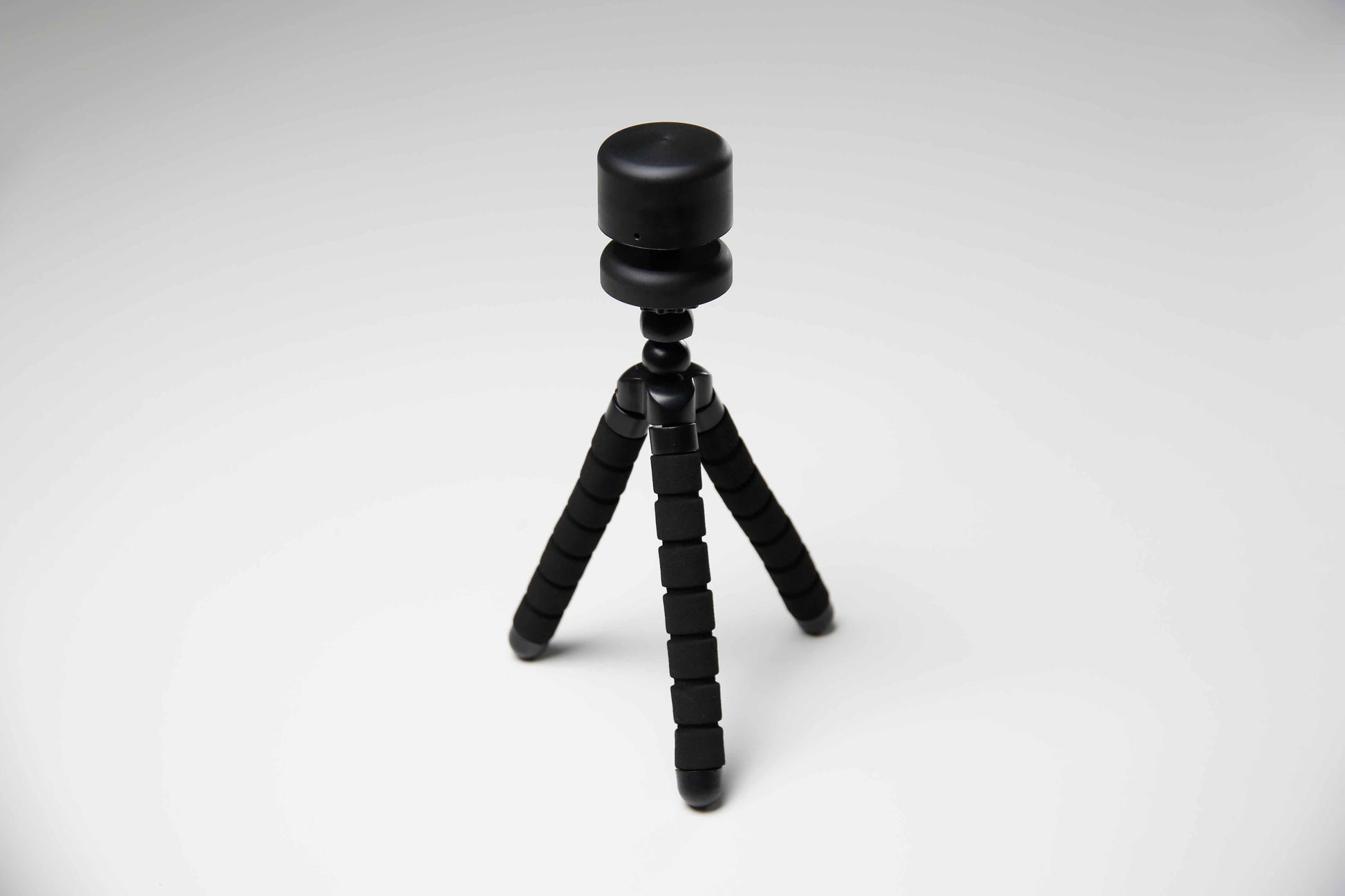

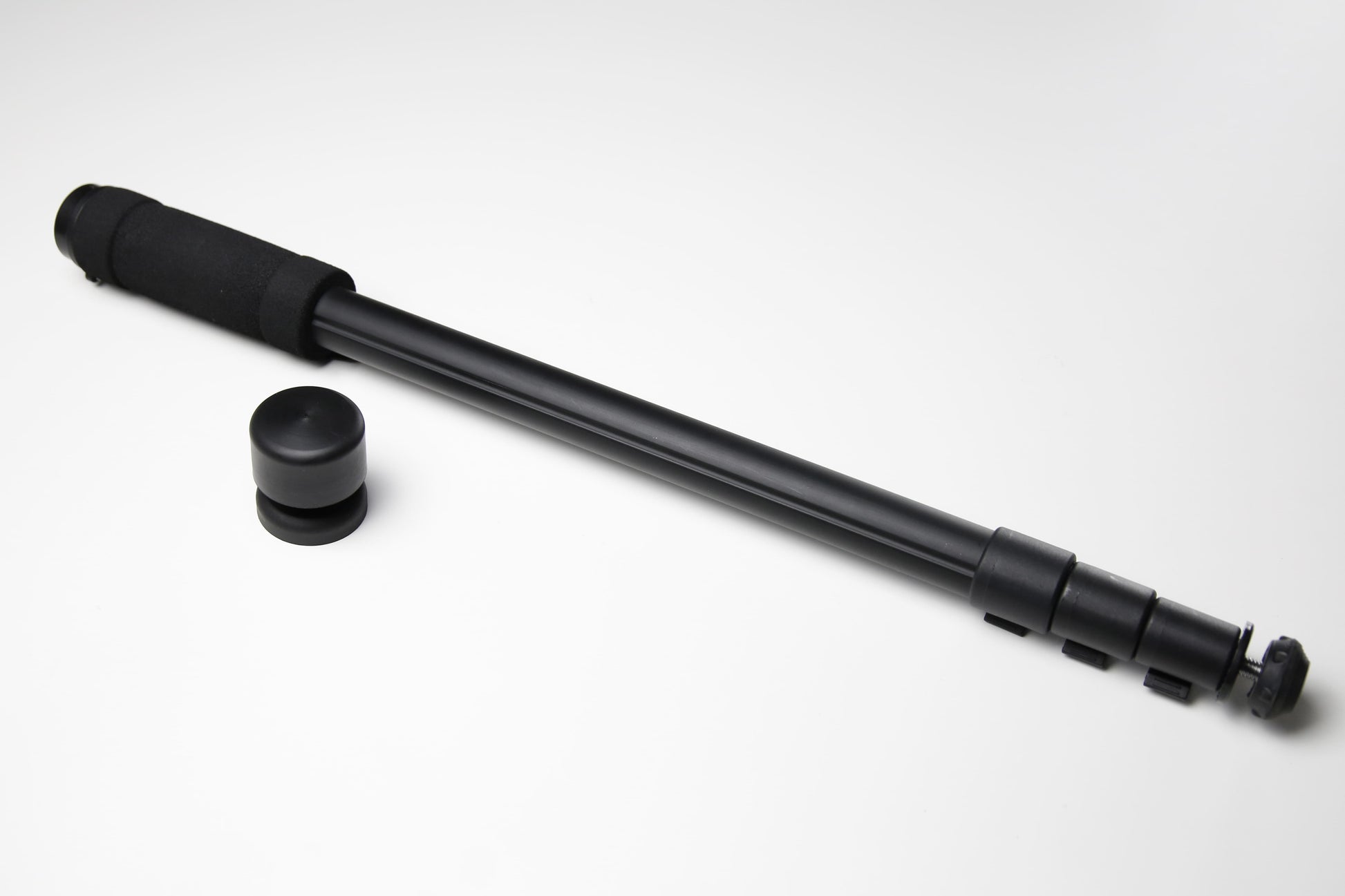

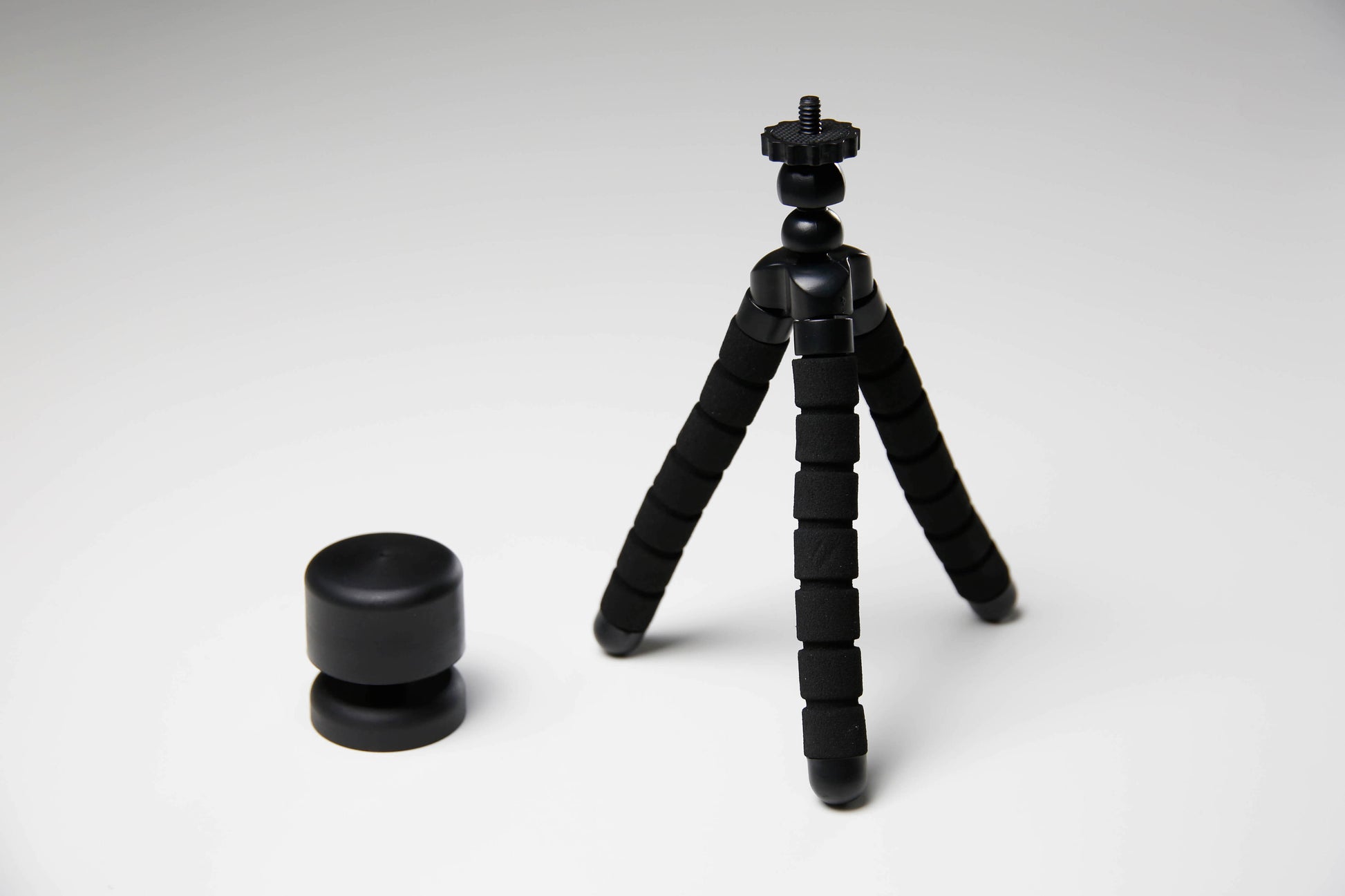

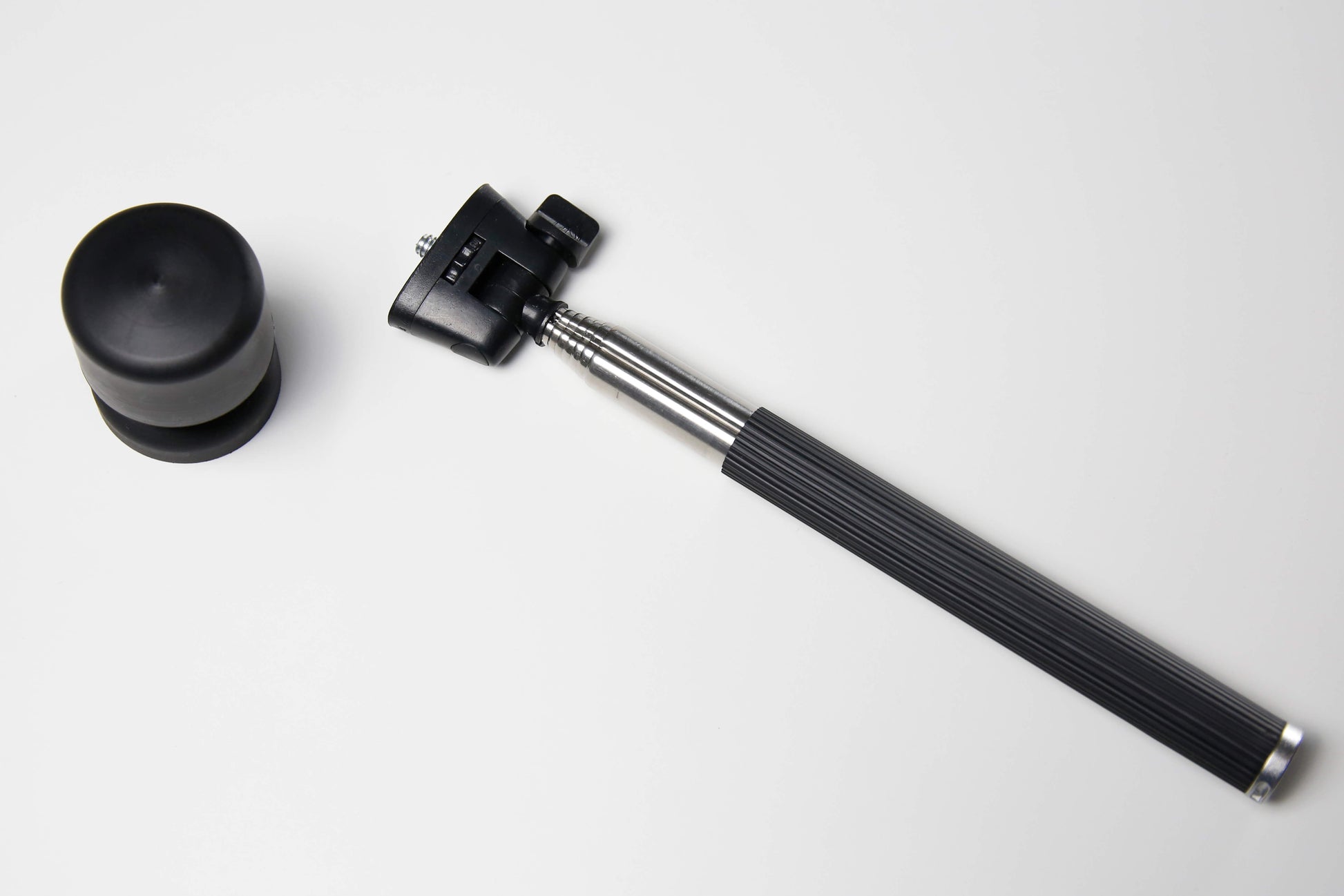

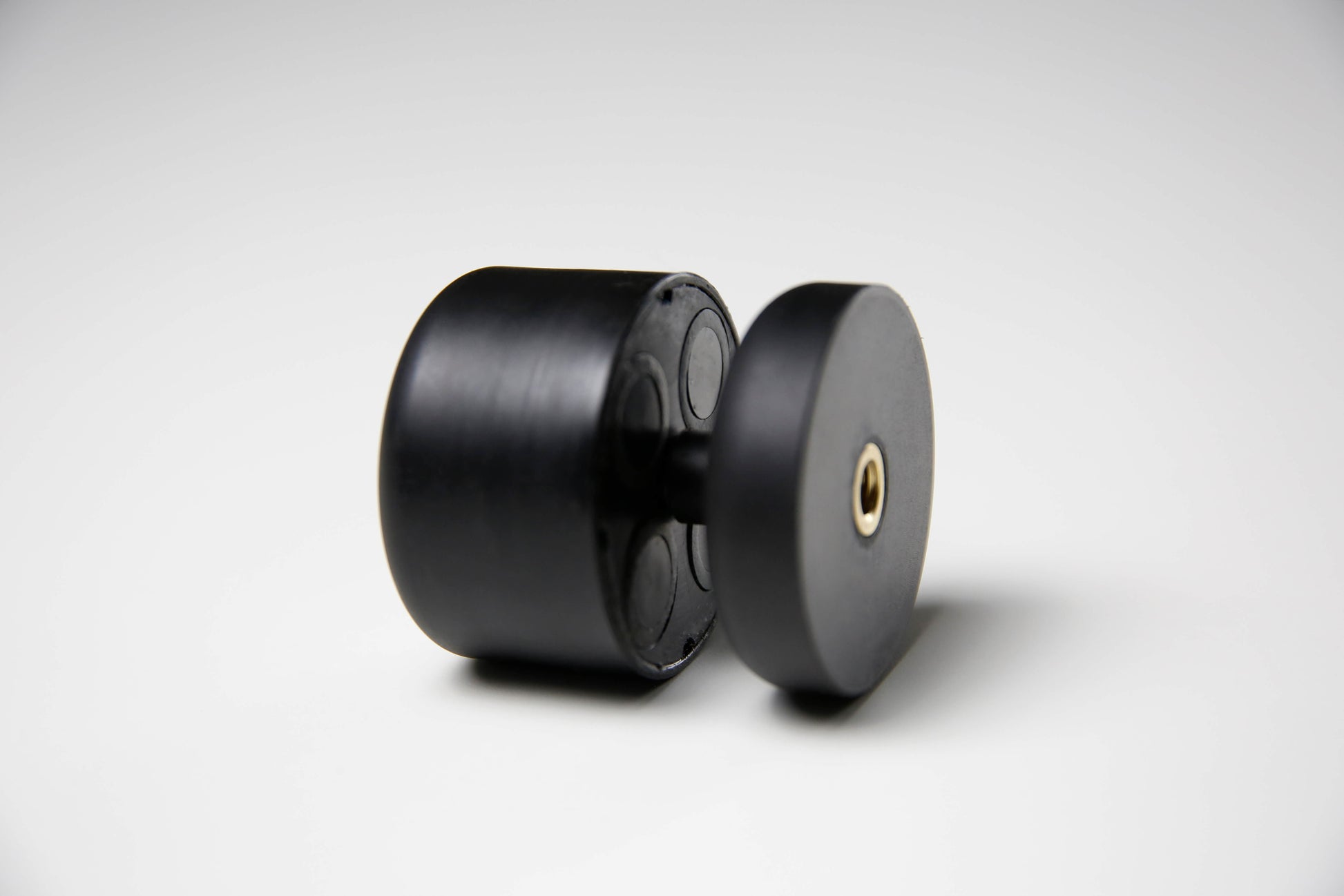

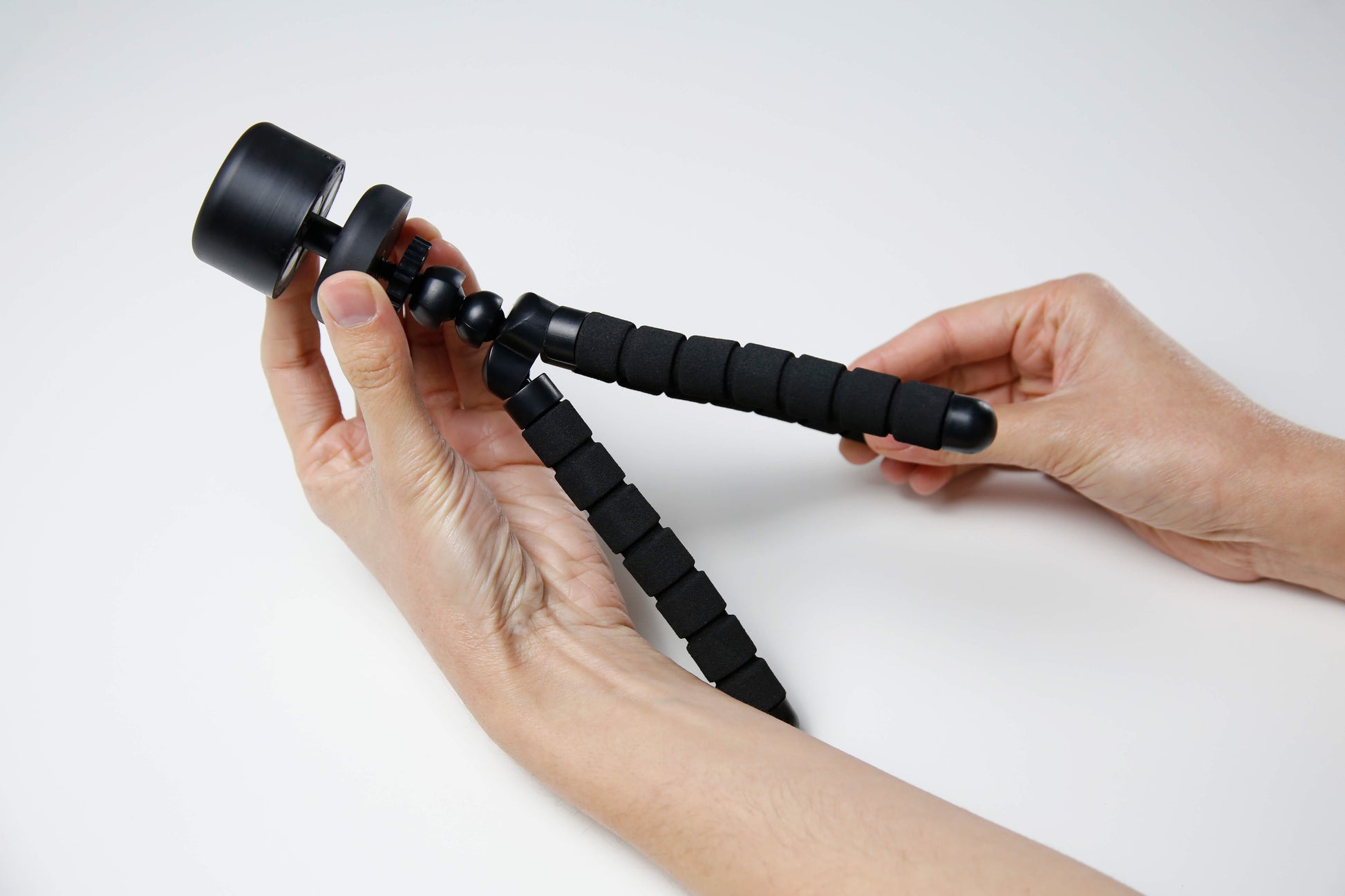

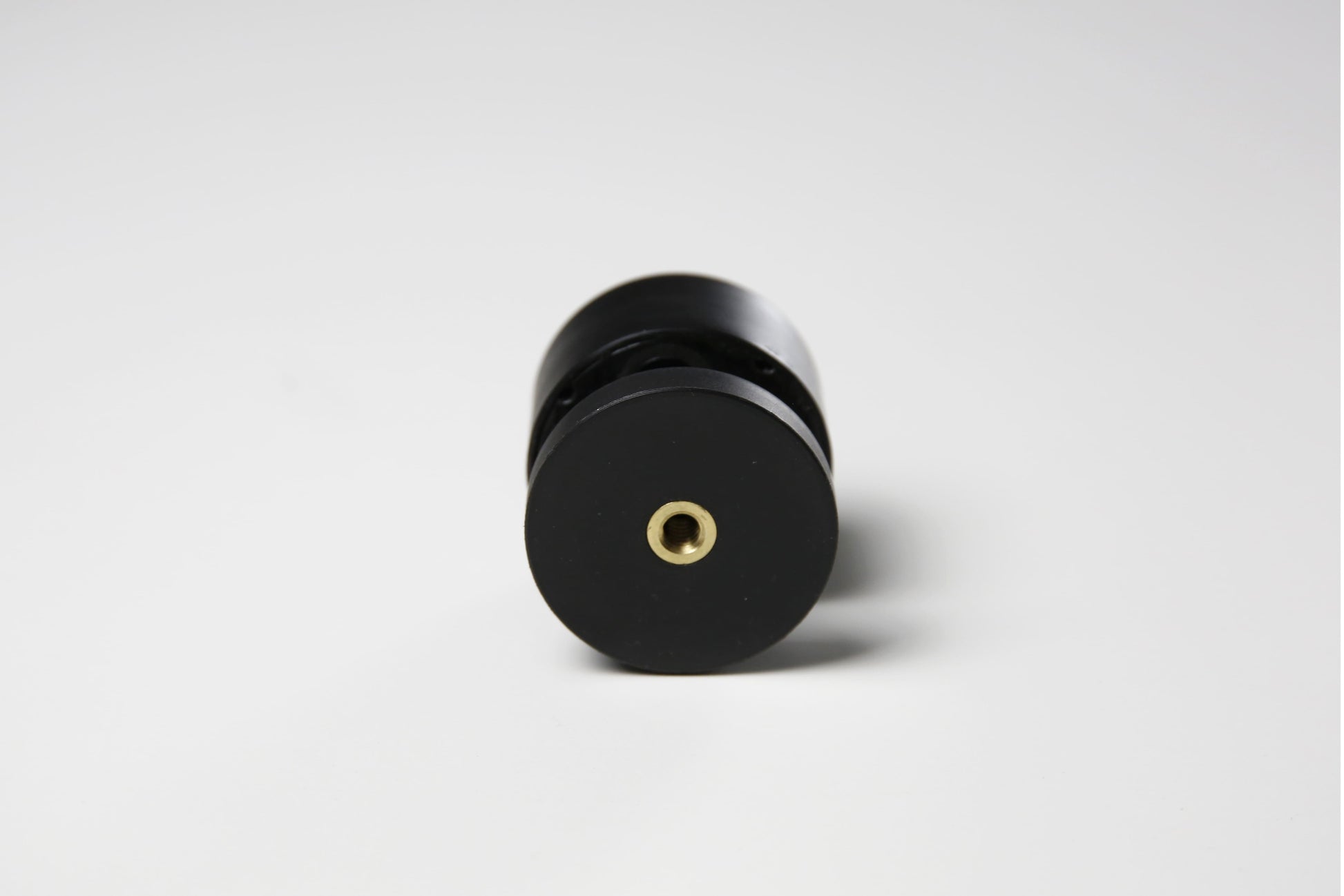

The Ultrasonic portable MINI has a female thread (1/4") perfect to be mounted on any tripod.

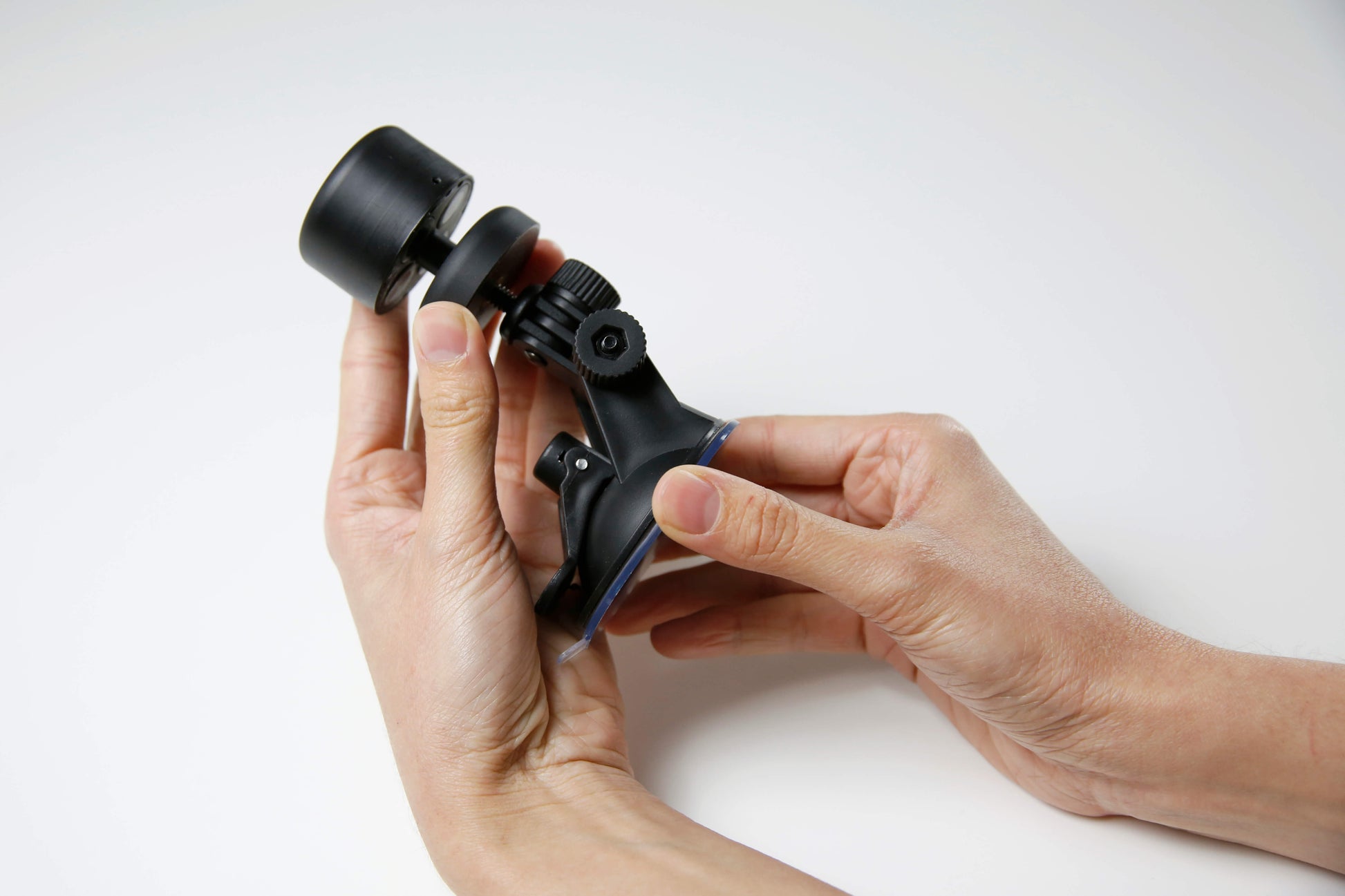

For those who want to see/read data while using Anemotracker App, the Phone Mount is the solution. A tiny accessory to put in the headphones hole there is in any Android phone.

Wireless and Battery Powered

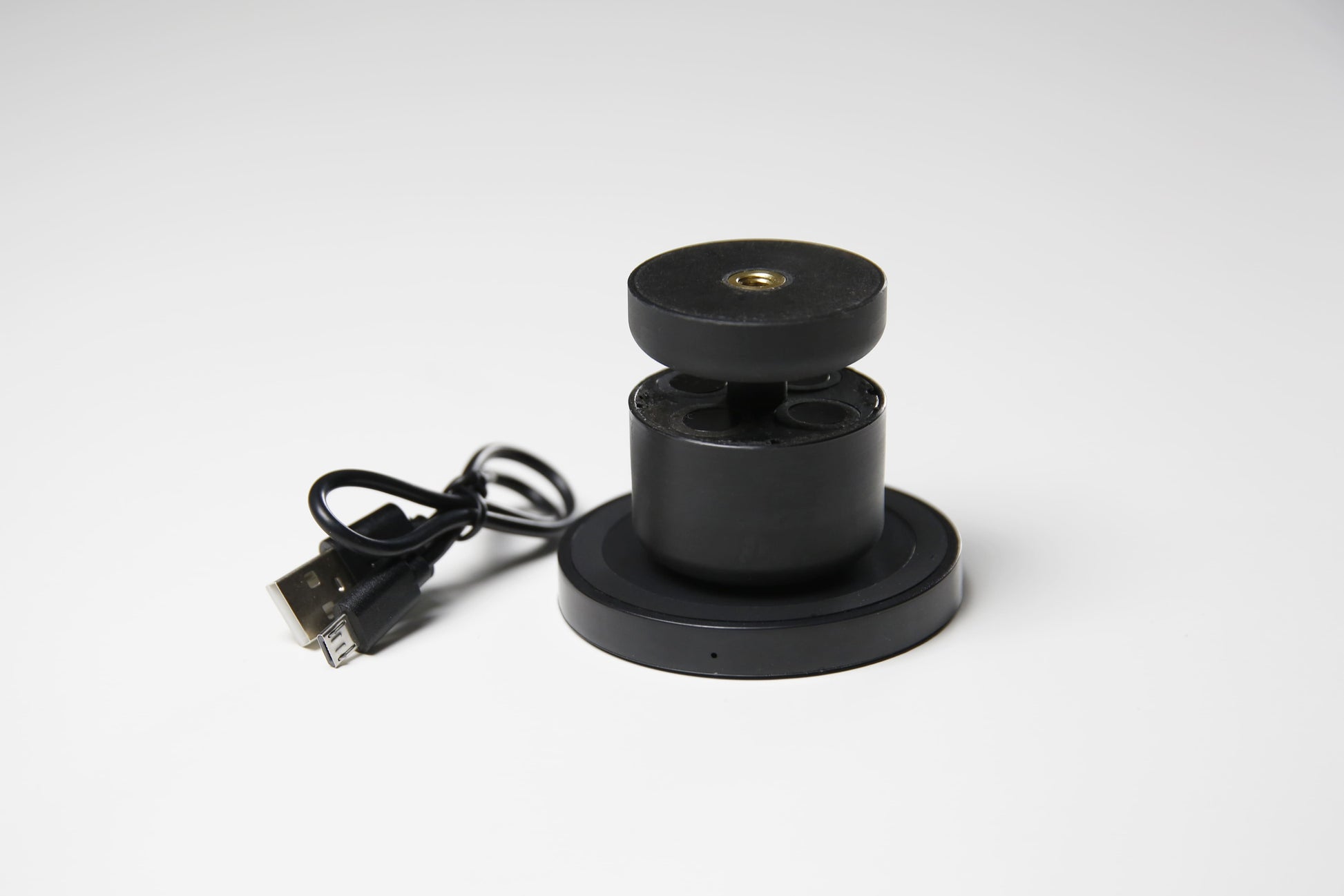

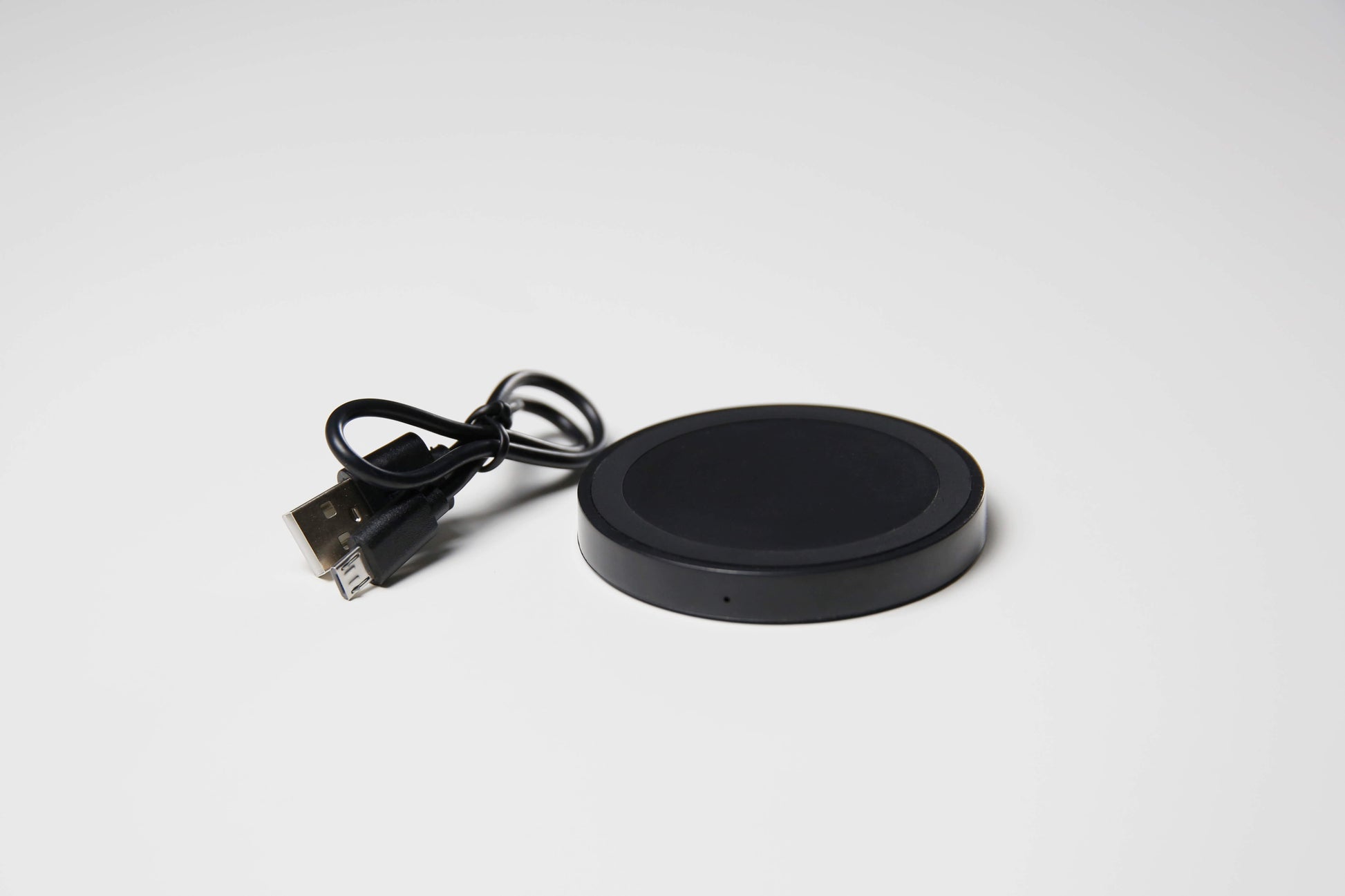

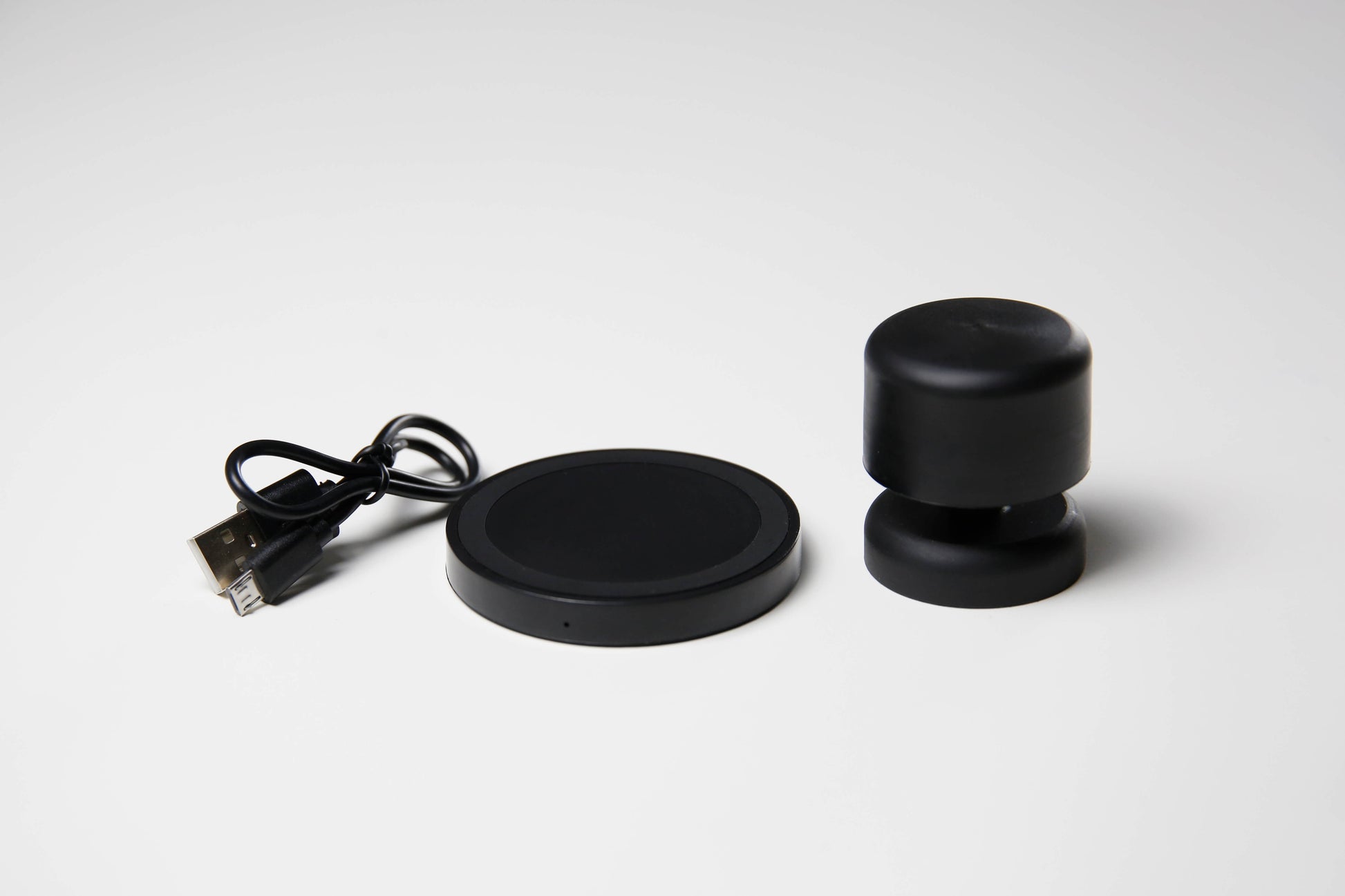

Wireless Charging QI- thanks to its Bluetooth connection, the Ultrasonic Portable Mini can be recharged on a wireless charged pad connected via USB to the power.

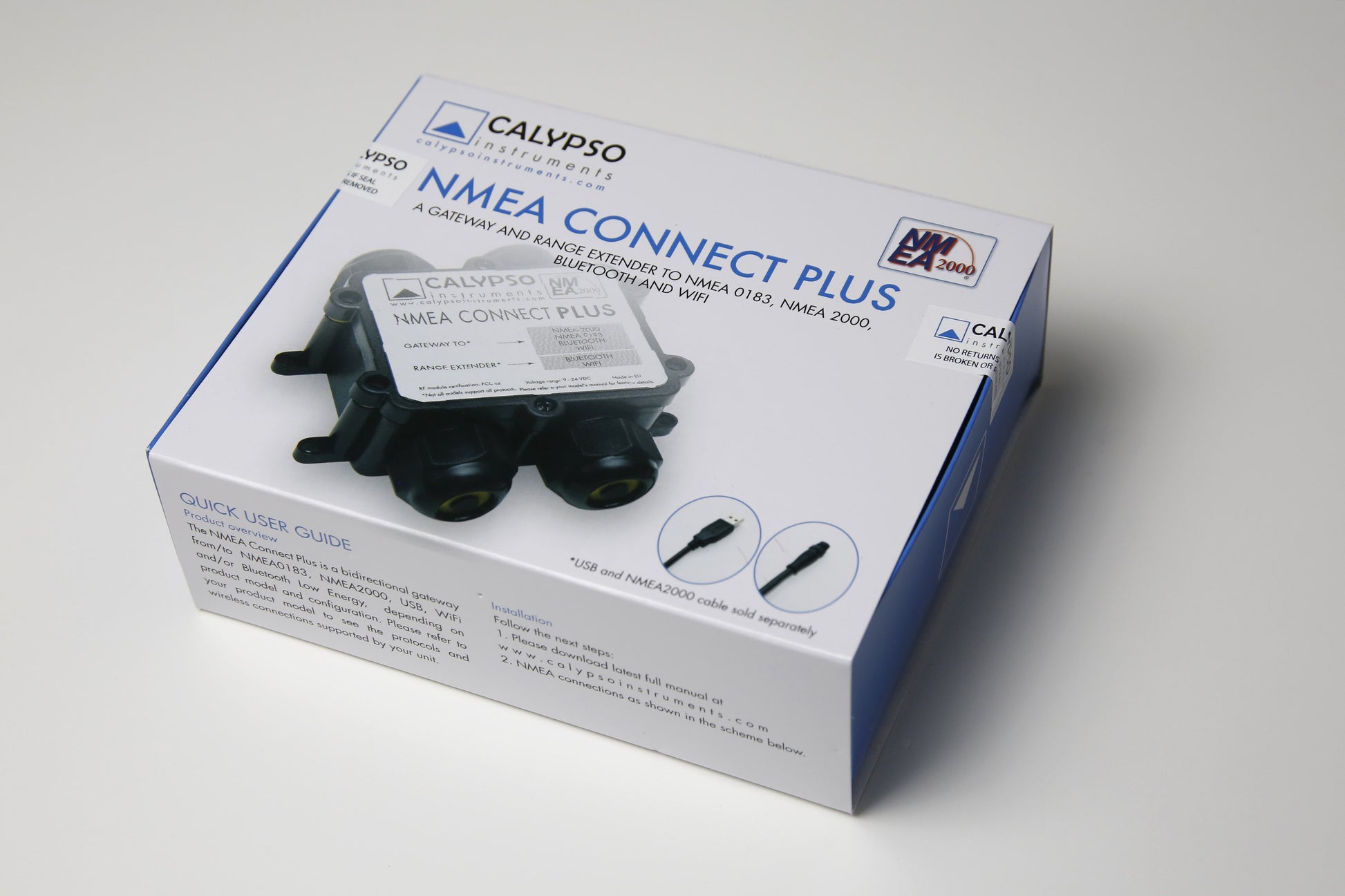

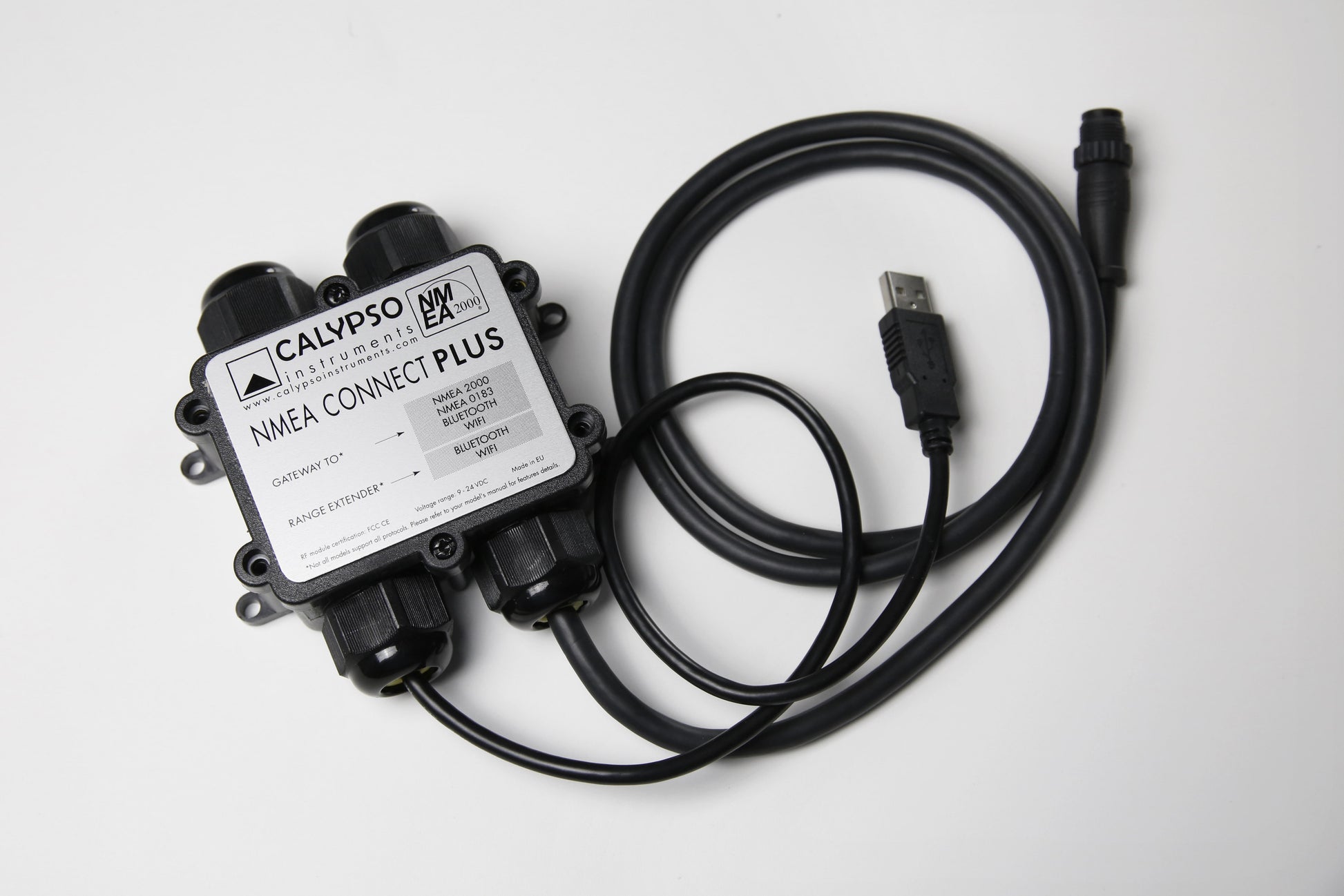

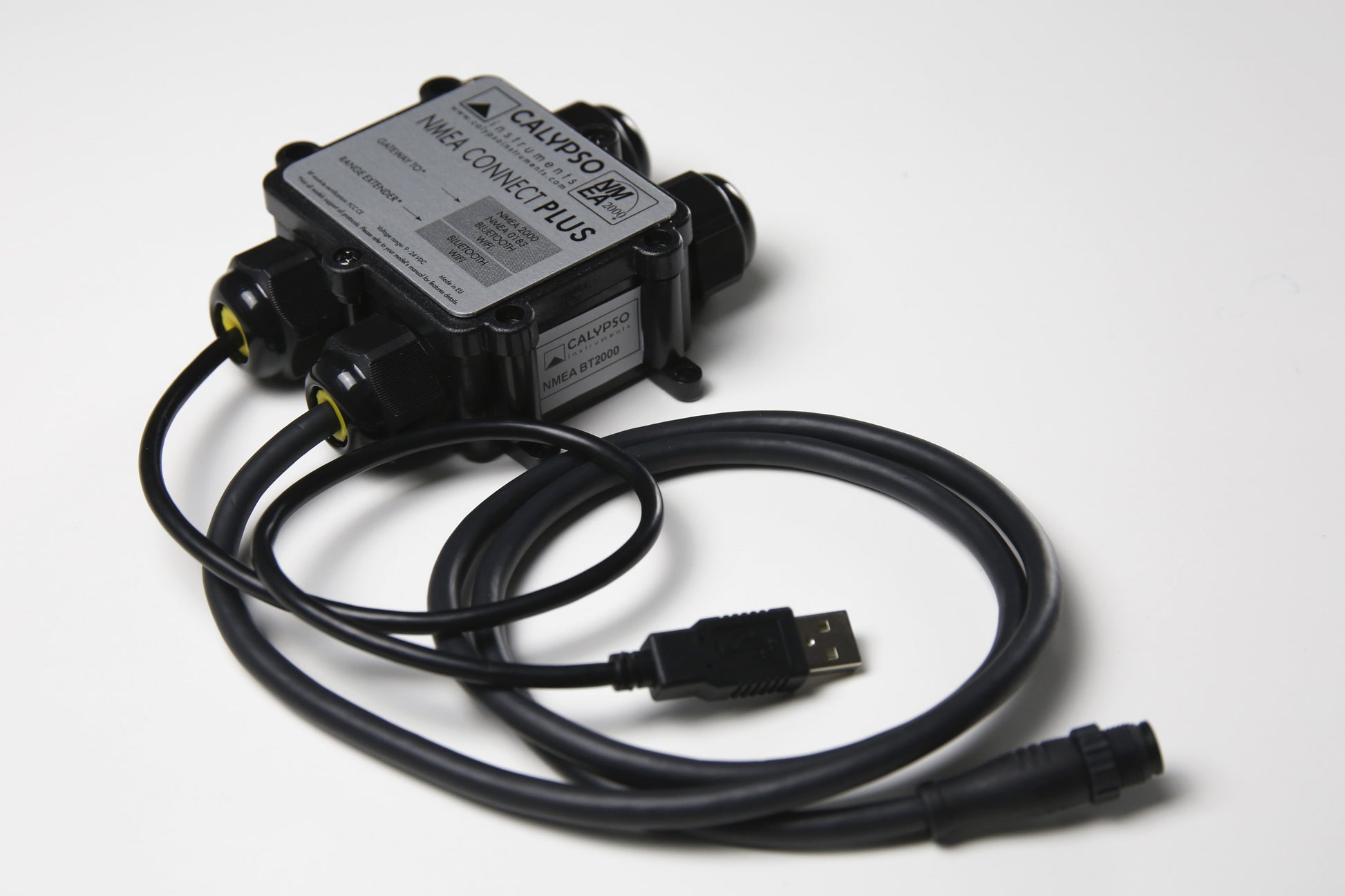

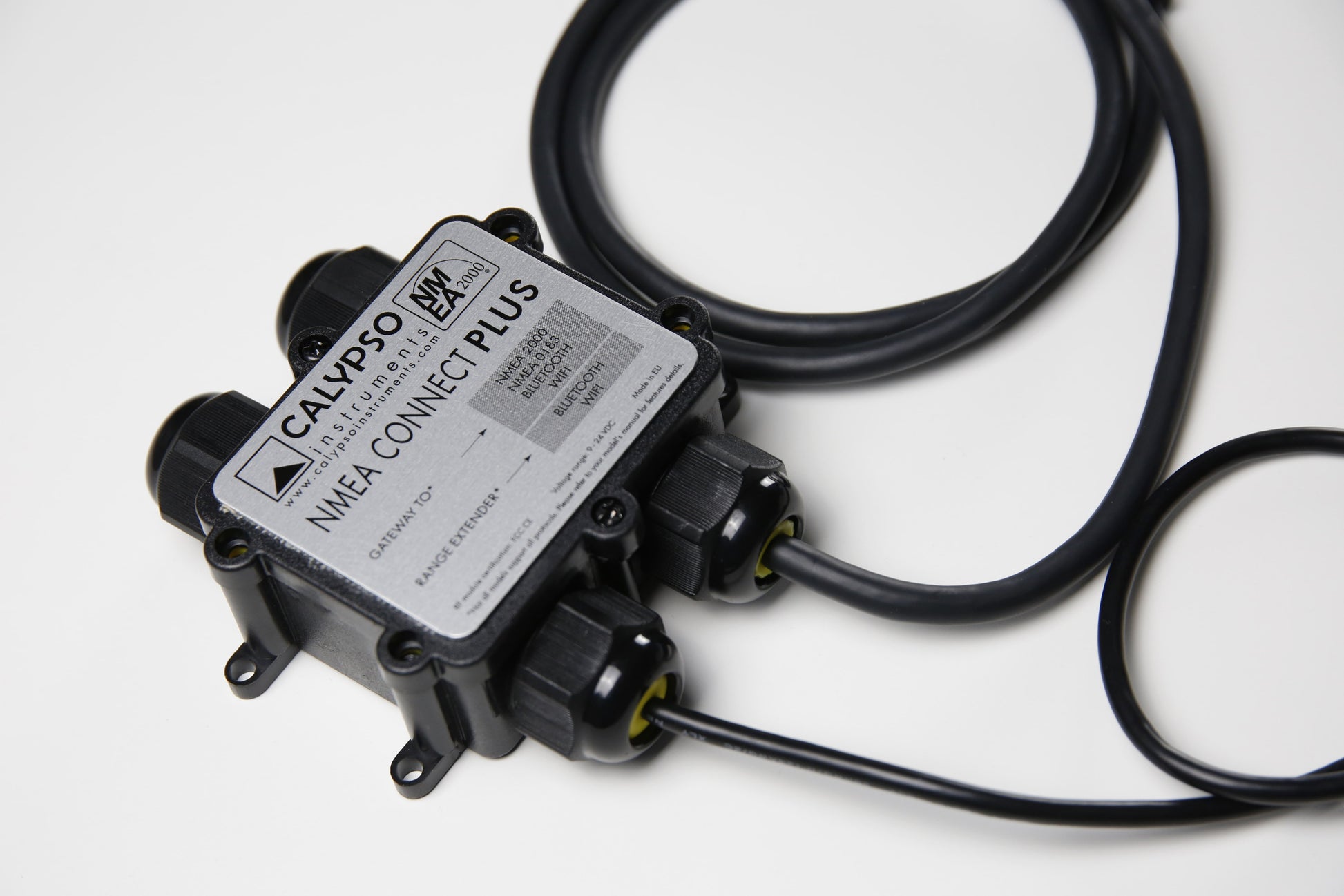

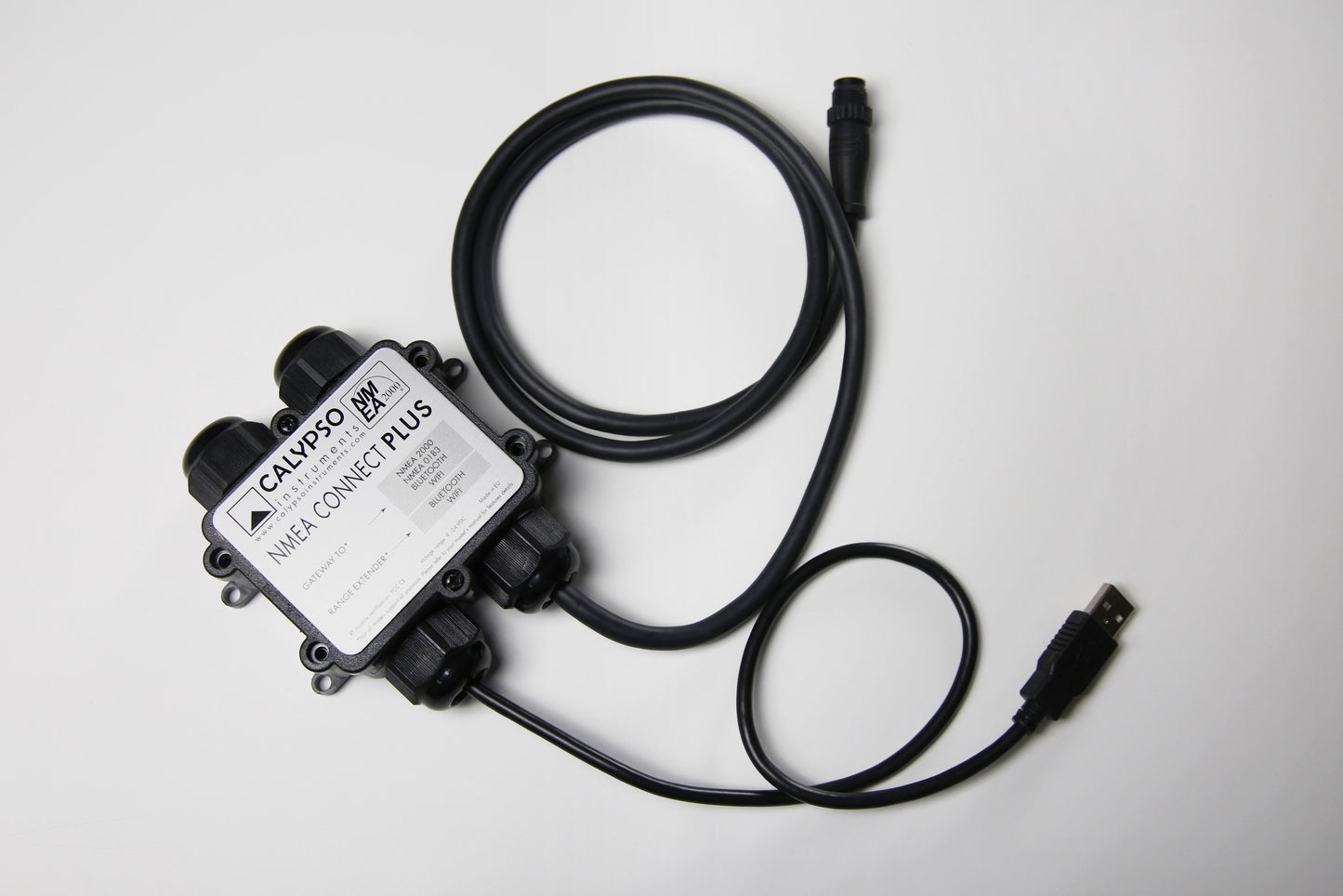

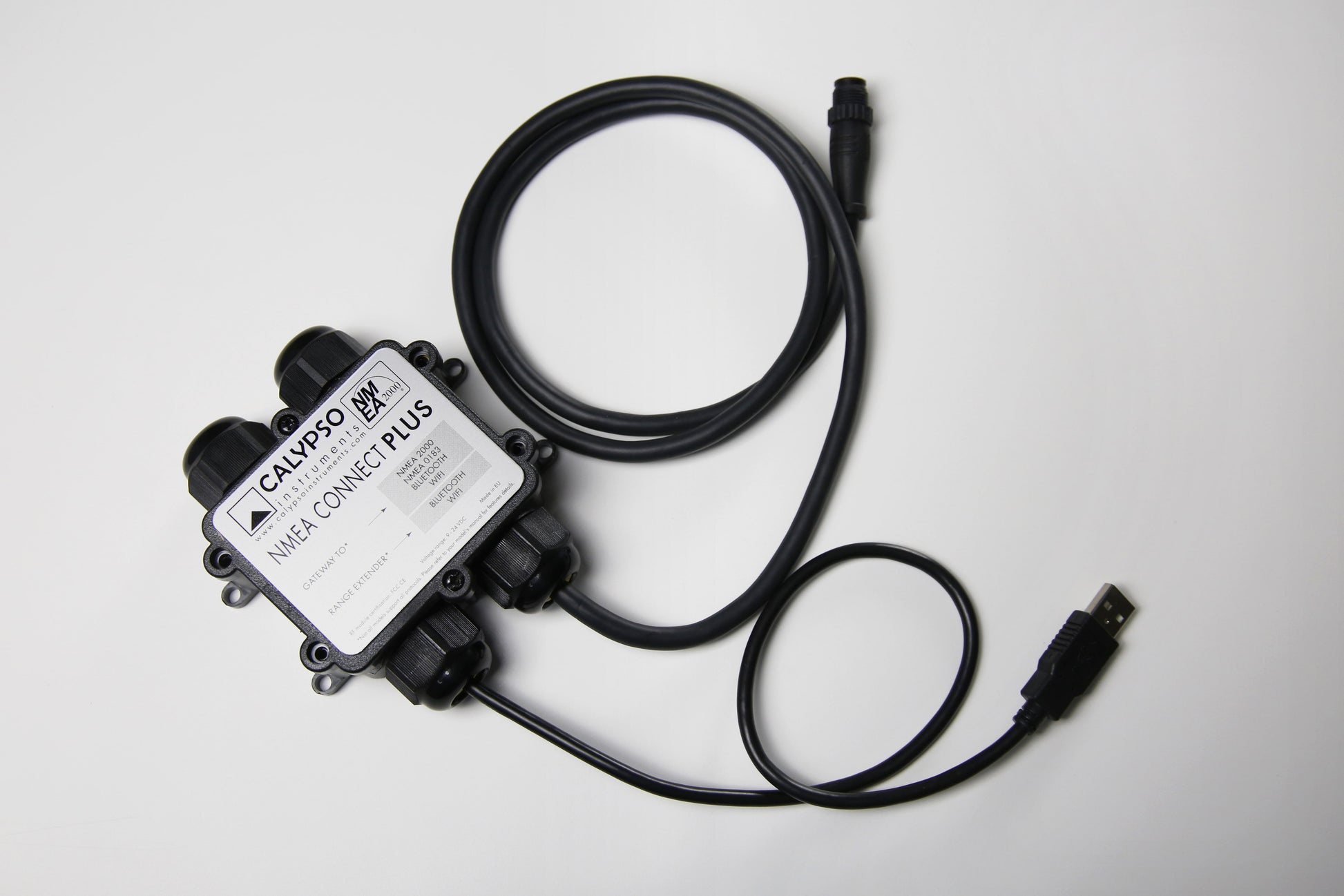

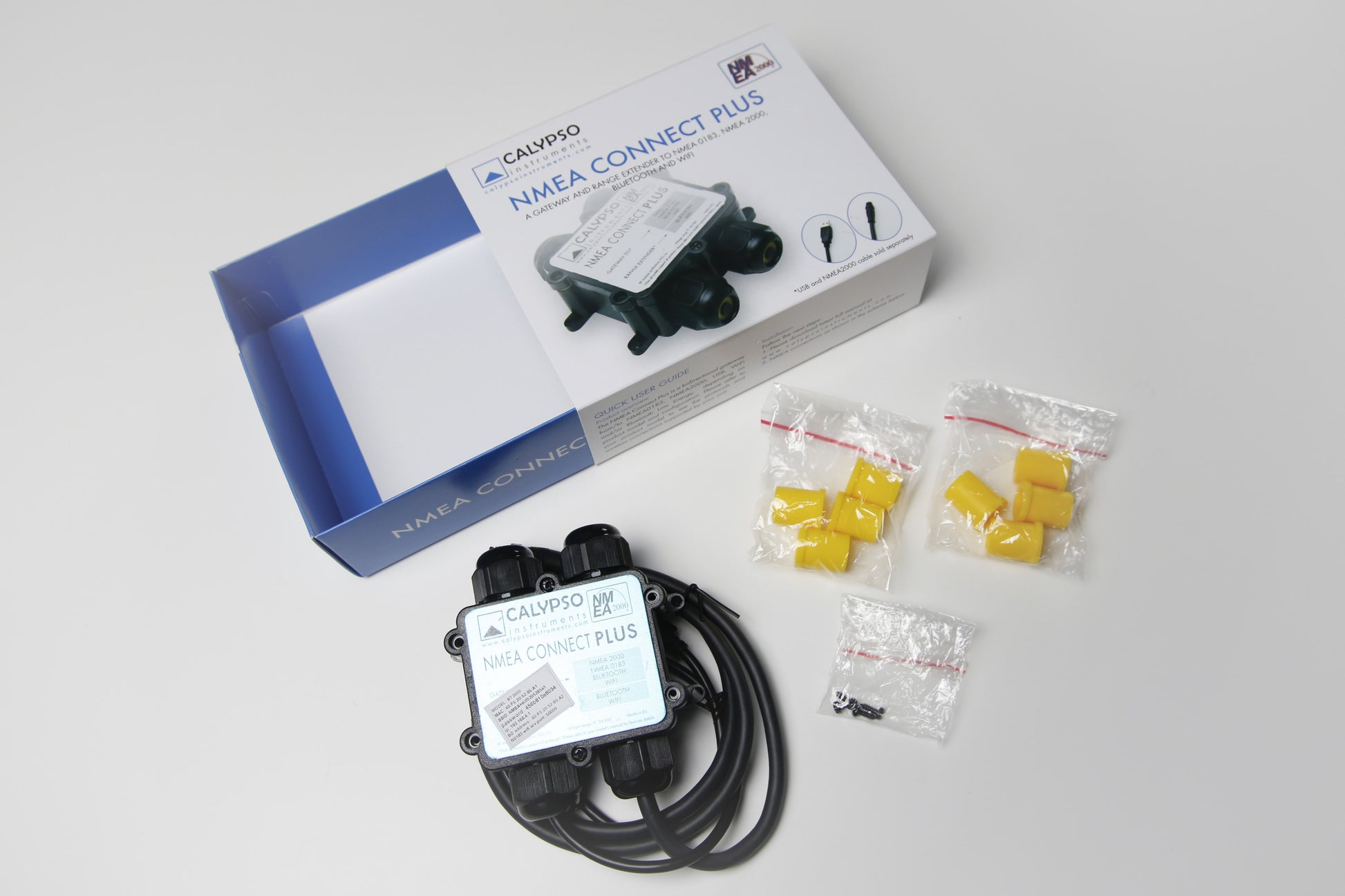

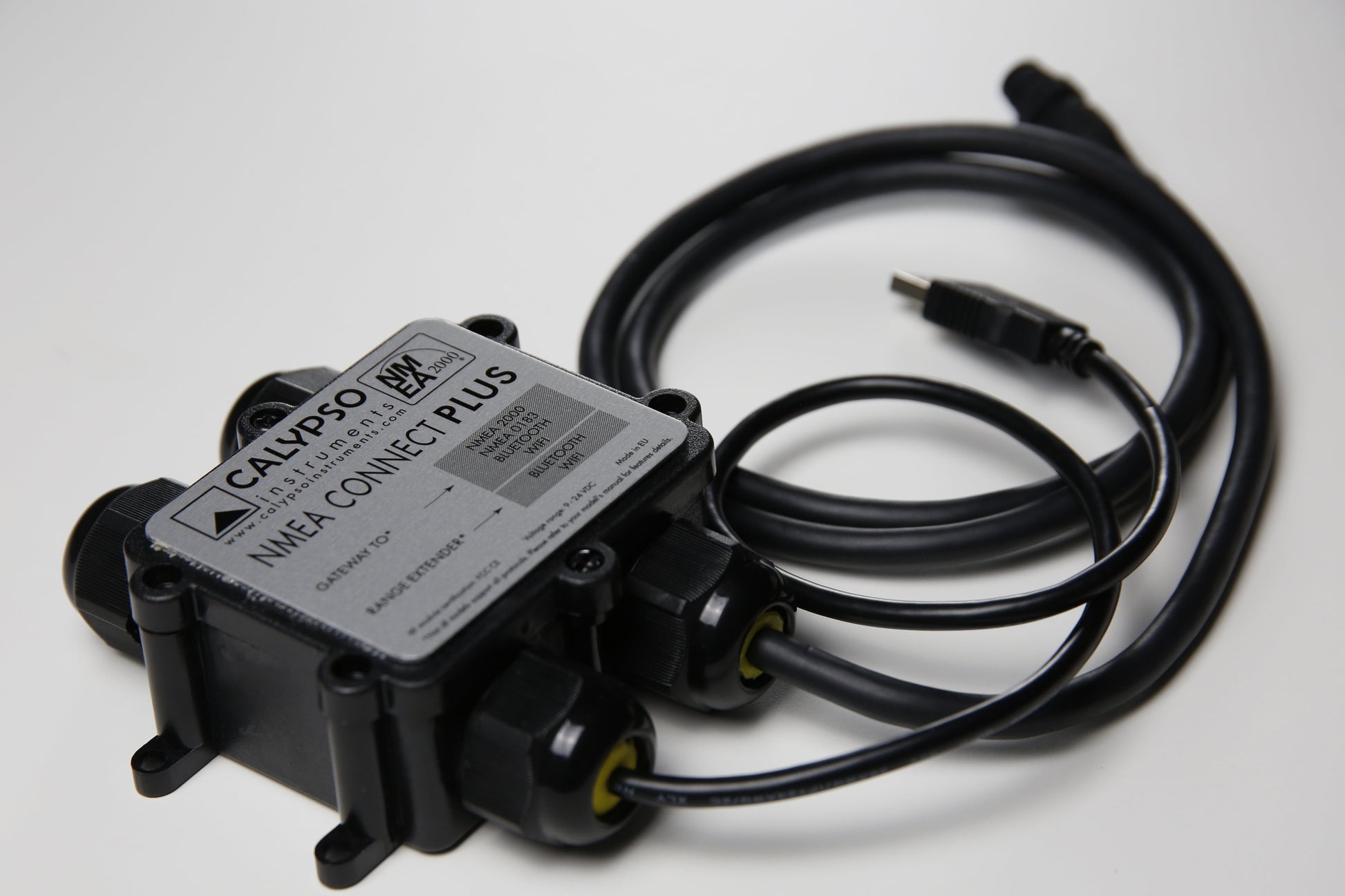

No data wires, but connectable to your network: its bluetooth connection avoids the hassle of wiring it to a display. Still, if you want to connect the Ultrasonic Portable to a display or network, you can use one of our gateways: the NMEA Connect Plus gets the Portable Bluetooth signal and converts it to a wired or NMEA0183 or NMEA2000 signal. It also relays the Bluetooth signal and casts NMEA0183 data via WiFi.

Special mention at the Dame Design Awards 2021

The Dame Design Awards recognize the best designed products at the Metstrade Show. Its unique relevance in the global marine marketplace emphasizes innovation and environmental impact among others.

NMEA 2000 output

The Ultrasonic Portable Mini wind meter can output an NMEA 2000 signal when using an NMEA Connect Plus NCP_BT2000 model.

It can also output an NMEA 0183 signal when using an NMEA Connect Plus NCP_BT0183 model.

Certifications



Get Anemotracker app for free!.

Despite  the multiple apps available, we do provide a free app: Anemotracker. It will allow you to get wind speed and direction from your Ultrasonic Portable Mini and Ultrasonic Portable Solar bluetooth anemometers. You can also save your wind meter data when tracking.

It includes 4 different modes : Marine, Golf, Meteo and Ballistics.

It will provide you with :

  • Apparent wind speed and direction.
  • Real wind speed and direction (if used on a vehicle or boat).
  • Tracking of your wind data and exportation via excel or Google Earth.
  • Available upgrade to the latest firmware version from the App-This new add-on will let the user to upgrade the Ultrasonic Portable to  the latest firmware version from Anemotracker app.
  • Wind direction adjustable damping.
  • Velocity Made Good calculations.
  •  New derived data: stylish graphs with Means and deviations.
  • Configuration from the units of measure: m/s, km/h, Kt.
  •  Threshold alarm, direction offset, map mode, etc...


 Download it for IOS

 Download it for Android

 Download it for Garmin Connect IQ

Other compatible apps.

Marine- Weather 4D, Sentinel Marine Solutions, iRegatta, eStela, Sail Racer, EDO Sailing Instruments, Sailgrib, qtVLm Navigation ,Routing or Tactiqs  and Atlas 2 by Vakaros among others.

Ballistics - Strelok Pro.

     Read More



Material
Machined engineering plastic (black)



Dimensions
Diameter : 43 mm (1.69 in.)
Height : 47 mm (1.85 in.)
Weight : 78 grams (2.75 oz.)
Wind Speed
Range : 1-25 m/s (2.24 - 56 mph)
Accuracy : ±0.3 m/s at 10 m/s ( 0.67 mph at 22.40 mph)


Wind Direction
Range : 0-359º
Accuracy : ± 1
Wind Information
Aparent and real wind speed & direction via Ap


Sensors
Ultrasonic transducers ( 4x)


Sample rate
1 Hz


Power
Battery powered ( Wireless charging QI)


Battery runtime
150 hours of active use


Data Output
Bluetooth 5.1. NMEA 0183- NMEA 2000 if used with NCP



Bluetooth Range
up to 30 m ( 98 ft.)


Firmware
Upgradable via Bluetooth


IP Code
IPX8 protection grade


Mount
Tripod mount - female thread screw


Compatibility
Android & IOS devices, tablets, Garmin watches


Data Output
Bluetooth
